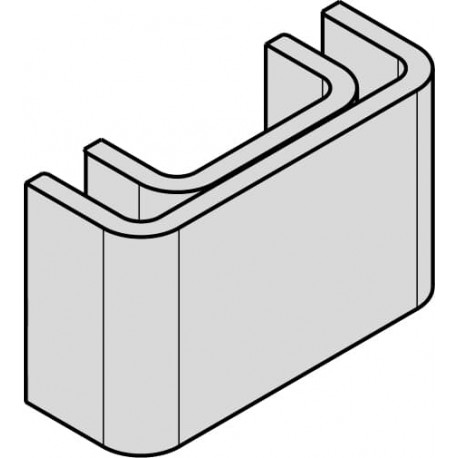

ABB 1SDA115472R1 1SDA115472R1 ABB Jumper E4.2DC 16-25 IEC 1pc recam View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA115472R1 ABB Jumper E4.2DC 16-25 IEC 1pc recam

1SDA115472R1

115472

ABB

1 Pcs.

Jumper E4.2DC 16-25 IEC 1pc recam

Automation > Connection vane/phase spreader
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as a specialized electrical connection accessory, this 1SDA115472R1 ABB Jumper E4.2DC 16-25 IEC 1pc recam ensures dependable continuity and bridging capabilities inside robust industrial switchgear systems. Technicians rely on high-integrity jumpers to route power accurately across complex busbar and circuit breaker architectures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: ZE4JP25DC-1
  • EAN: 8056221075596
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 81 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 515 mm
  • Package Level 1 Height: 600 mm
  • Package Level 1 Depth / Length: 785 mm
  • Package Level 1 Gross Weight: 95 kg

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZE4JP25DC-1
EAN8056221075596
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight81 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length785 mm
Package Level 1 Gross Weight95 kg
Package Level 1 EAN8056221075596
Additional Information
Product Main TypeAccessories for Emax 2
Product NameAccessory
Product TypeAccessories
Technical
Configuration TypeLoose or configurable
Current TypeDC
Number of Poles4P
Rated Insulation Voltage (Ui)1500 V
Rated Operational Voltage1500 V DC
Rated Voltage (Ur)1500 V
Short-Circuit Performance LevelN
Sub-typeE4.2
Certificates and Declarations
Data Sheet, Technical Information1SDC200045D0201
Declaration of Conformity - CE9AKK107992A0071
Instructions and Manuals1SDH002083A1002
External Classifications and Standards
ETIM 9EC002019 - Connection vane/phase spreader
ETIM 10EC002019 - Connection vane/phase spreader
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371305
