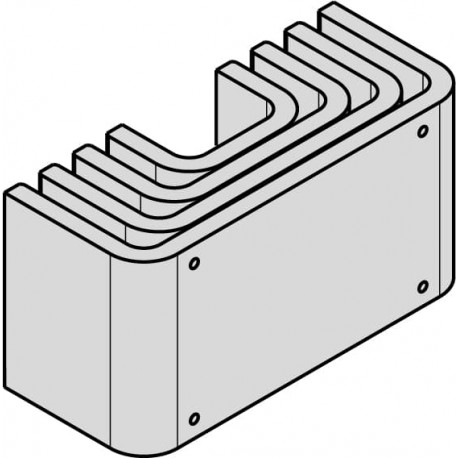

ABB 1SDA115471R1 1SDA115471R1 ABB Jumper E4.2DC 32-40IEC 16-32UL 1pc recam View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA115471R1 ABB Jumper E4.2DC 32-40IEC 16-32UL 1pc recam

1SDA115471R1

115471

ABB

1 Pcs.

Jumper E4.2DC 32-40IEC 16-32UL 1pc recam

Automation > Connection vane/phase spreader
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered by Abb as part number 1SDA115471R1, this Jumper E4.2DC 32-40IEC 16-32UL 1pc recam acts as a high-integrity electrical linking component designed for specialized direct current circuit breaker arrangements. Bus jumpers and link kits of this classification facilitate proper current bridging across pole terminals in heavy electrical distribution systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: ZE4JP40DC-1
  • EAN: 8056221075589
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 81 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 515 mm
  • Package Level 1 Height: 600 mm
  • Package Level 1 Depth / Length: 785 mm
  • Package Level 1 Gross Weight: 95 kg

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZE4JP40DC-1
EAN8056221075589
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight81 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length785 mm
Package Level 1 Gross Weight95 kg
Package Level 1 EAN8056221075589
Additional Information
Product Main TypeAccessories for Emax 2
Product NameAccessory
Product TypeAccessories
Technical
Configuration TypeLoose or configurable
Current TypeDC
Number of Poles4P
Rated Insulation Voltage (Ui)1500 V
Rated Operational Voltage1500 V DC
Rated Voltage (Ur)1500 V
Short-Circuit Performance LevelN
Sub-typeE4.2
Certificates and Declarations
Data Sheet, Technical Information1SDC200045D0201
Declaration of Conformity - CE9AKK107992A0071
Instructions and Manuals1SDH001000R0842
External Classifications and Standards
ETIM 9EC002019 - Connection vane/phase spreader
ETIM 10EC002019 - Connection vane/phase spreader
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371305
