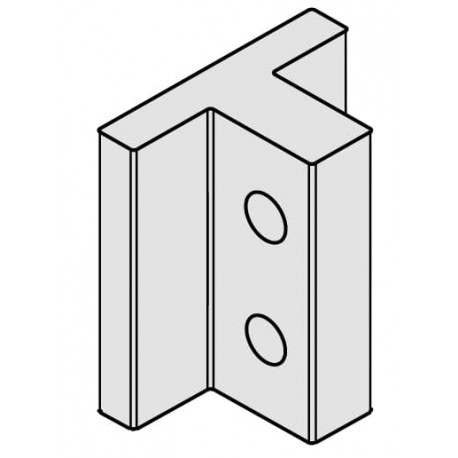

ABB 1SDA115464R1 1SDA115464R1 ABB HR/VR Kit E4.2DC 16-25IEC 16-20UL 4p rec View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA115464R1 ABB HR/VR Kit E4.2DC 16-25IEC 16-20UL 4p rec

1SDA115464R1

115464

ABB

1 Pcs.

HR/VR Kit E4.2DC 16-25IEC 16-20UL 4p rec Kit HR/VR E4.2DC 16-25IEC 16-20UL 4p spr

Automation > Connection vane/phase spreader
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 1SDA115464R1 ABB HR/VR Kit E4.2DC 16-25IEC 16-20UL 4p rec functions as a specialized terminal configuration kit engineered for direct current circuit breaker installations. Heavy-duty switchgear setups rely on such conversion components to adapt busbar orientations, ensuring precise alignment and dependable power routing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: ZE4HRVR25DC-4
  • EAN: 8056221075510
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 81 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 515 mm
  • Package Level 1 Height: 600 mm
  • Package Level 1 Depth / Length: 785 mm
  • Package Level 1 Gross Weight: 95 kg

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZE4HRVR25DC-4
EAN8056221075510
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight81 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length785 mm
Package Level 1 Gross Weight95 kg
Package Level 1 EAN8056221075510
Additional Information
Product Main TypeAccessories for Emax 2
Product NameAccessory
Product TypeAccessories
Technical
Current TypeDC
Number of Poles4P
Rated Insulation Voltage (Ui)1500 V
Rated Operational Voltage1500 V DC
Rated Voltage (Ur)1500 V
Short-Circuit Performance LevelN
Sub-typeE4.2
Certificates and Declarations
Data Sheet, Technical Information1SDC200045D0201
Declaration of Conformity - CE9AKK107992A0071
Instructions and Manuals1SDH001400R0832
External Classifications and Standards
ETIM 9EC002019 - Connection vane/phase spreader
ETIM 10EC002019 - Connection vane/phase spreader
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371305

Product Datasheet
