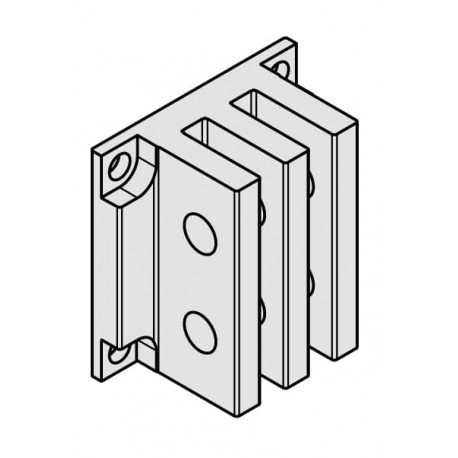

ABB 1SDA115463R1 1SDA115463R1 ABB HR/VR Kit E4.2DC 32-40 IEC 4pcs recam View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA115463R1 ABB HR/VR Kit E4.2DC 32-40 IEC 4pcs recam

1SDA115463R1

115463

ABB

1 Pcs.

HR/VR Kit E4.2DC 32-40 IEC 4pcs recam Kit HR/VR E4.2DC 32-40 IEC 4pcs spare

Automation > Connection vane/phase spreader
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Utilizing a 1SDA115463R1 ABB HR/VR kit allows technicians to configure high-capacity circuit breakers with specialized terminal orientations. These hardware kits are implemented in heavy electrical switchboards to facilitate secure rear busbar connections for demanding DC power distribution networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Extended Product Type: Kit HR/VR E4.2DC 32-40 IEC 4pcs spare
  • Product ID: 1SDA115463R1
  • Catalog Description: Kit HR/VR E4.2DC 32-40 IEC 4pcs spare
  • Long Description: REAR TERMINALS HORIZONTAL/VERTICAL E4.2 MS/DC-E 3200-4000A IEC _ 4pcs spare
  • Current Type: DC
  • Number of Poles: 4
  • Product Main Type: Accessories for Emax 2
  • Product Name: Accessory
  • Product Type: Accessories
  • Rated Voltage (U r ): 1500 V

More info

▲
  • Extended Product Type:
    Kit HR/VR E4.2DC 32-40 IEC 4pcs spare
  • Product ID:
    1SDA115463R1
  • EAN:
    8056221075503
  • Catalog Description:
    Kit HR/VR E4.2DC 32-40 IEC 4pcs spare
  • Long Description:
    REAR TERMINALS HORIZONTAL/VERTICAL E4.2 MS/DC-E 3200-4000A IEC _ 4pcs spare

Circular Value

Environmental

Ordering

  • Order Code US and Canada:
    ZE4HRVR40DCE-4
  • EAN:
    8056221075503
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85389099

Container Information

  • Package Level 1 Units:
    box 1 piece
  • Package Level 1 EAN:
    8056221075503

Additional Information

  • Current Type:
    DC
  • Number of Poles:
    4
  • Product Main Type:
    Accessories for Emax 2
  • Product Name:
    Accessory
  • Product Type:
    Accessories
  • Rated Voltage (Ur):
    1500 V
  • Rated Insulation Voltage (Ui):
    1500 V
  • Rated Operational Voltage:
    1500 V DC
  • Short-Circuit Performance Level:
    N
  • Sub-type:
    E4.2

Certificates and Declarations

Classifications

  • ETIM 7:
    EC002019 - Connection vane/phase spreader
  • ETIM 8:
    EC002019 - Connection vane/phase spreader
  • ETIM 9:
    EC002019 - Connection vane/phase spreader
  • Object Classification Code:
    Q
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • eClass:
    V11.1 : 27371305
