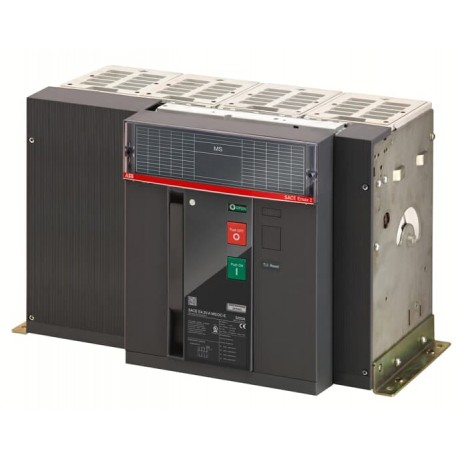

1SDA115438R1 ABB E4.2H-A MS/DC-E 1600A 1500V 4p F VR
1SDA115438R1
115438
ABB
1 Pcs.
E4.2H-A MS/DC-E 1600A 1500V 4p F VR
Connectors > Switch disconnector
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb air circuit breaker, model 1SDA115438R1, serves as heavy-duty electrical protection equipment designed to interrupt high fault currents and safeguard large-scale industrial electrical infrastructure and distribution networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- EAN: 8056221075244
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 510 mm
- Product Net Height: 371 mm
- Product Net Depth / Length: 270 mm
- Product Net Weight: 67 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 515 mm
- Package Level 1 Height: 600 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| EAN | 8056221075244 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 510 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 67 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 785 mm |
| Package Level 1 Gross Weight | 79 kg |
| Package Level 1 EAN | 8056221075244 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Switch Disconnector |
| Product Type | Switch Disconnector |
| Version | F |
| Technical | |
| Current Type | DC |
| Number of Poles | 4P |
| Power Loss | 130 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 12000 V |
| Rated Insulation Voltage (Ui) | 1500 V |
| Rated Operational Voltage | 1500 V DC |
| Rated Short-time Withstand Current Low Voltage (Icw) | 85 kA |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Rated Voltage (Ur) | 1500 V |
| Short-Circuit Performance Level | N |
| Standards | UL |
| Sub-type | E4.2 |
| Terminal Connection Type | Rear flat Vertical |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200045D0201 |
| Declaration of Conformity - CE | 9AKK107992A0071 |
| Instructions and Manuals | 1SDH002083A1002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
