ABB 1SDA115436R1 1SDA115436R1 ABB E4.2S-A MS/DC-E 3200A 1500V 4p W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

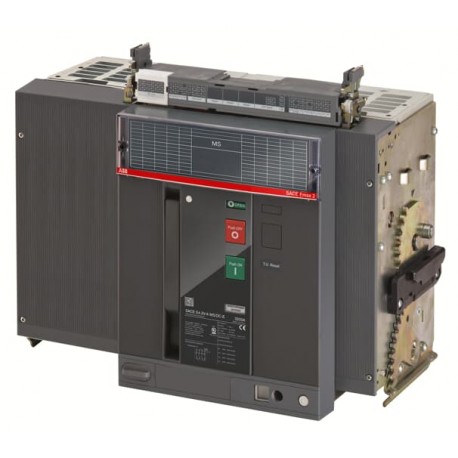

1SDA115436R1 ABB E4.2S-A MS/DC-E 3200A 1500V 4p W MP

1SDA115436R1

115436

ABB

1 Pcs.

E4.2S-A MS/DC-E 3200A 1500V 4p W MP

Connectors > Switch disconnector
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Abb 1SDA115436R1 withdrawable circuit breaker mechanism provides heavy-duty power distribution protection and safe isolation capabilities inside high-capacity electrical switchgear assemblies. Large switchgear components like this ensure reliable fault clearing and manageable maintenance routines in industrial power systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: PCSH00A00000000000XX
  • EAN: 8056221075220
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Product Net Width: 510 mm
  • Product Net Height: 371 mm
  • Product Net Depth / Length: 270 mm
  • Product Net Weight: 85 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 515 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaPCSH00A00000000000XX
EAN8056221075220
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width510 mm
Product Net Height371 mm
Product Net Depth / Length270 mm
Product Net Weight85 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length785 mm
Package Level 1 Gross Weight95 kg
Package Level 1 EAN8056221075220
Additional Information
Product Main TypeSACE Emax 2
Product NameSwitch Disconnector
Product TypeSwitch Disconnector
VersionW
Technical
Current TypeDC
Number of Poles4P
Power Loss800 W
Rated Current (In)3200 A
Rated Impulse Withstand Voltage (Uimp)12000 V
Rated Insulation Voltage (Ui)1500 V
Rated Operational Voltage1500 V DC
Rated Short-time Withstand Current Low Voltage (Icw)65 kA
Rated Uninterrupted Current (Iu)3200 A
Rated Voltage (Ur)1500 V
Short-Circuit Performance LevelN
StandardsUL
Sub-typeE4.2
Certificates and Declarations
Data Sheet, Technical Information1SDC200045D0201
Declaration of Conformity - CE9AKK107992A0071
Instructions and Manuals1SDH002083A1002
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27371403

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
