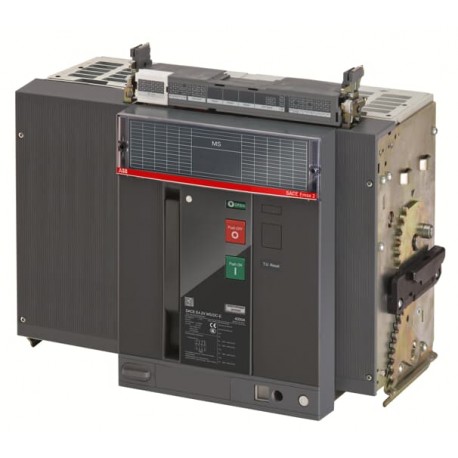

1SDA115424R1 ABB E4.2V MS/DC-E 3200A 1500V 4p W MP
1SDA115424R1
115424
ABB
1 Pcs.
Connectors > Switch disconnector
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Equipped with withdrawable slide-in mechanics, the Abb 1SDA115424R1 is a heavy-duty four-pole circuit component designed for high-voltage DC distribution and isolation applications. High-capacity disconnectors and switches of this scale safely manage massive electrical loads within large-scale industrial switchboards and power transmission infrastructure. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 0
- Max. rated operation voltage Ue AC (EF007355): 1500 V
- Rated operating voltage (EF001435): 1500 V
- Rated permanent current Iu (EF001389): 3200 A
- Rated permanent current at AC-23, 400 V (EF011777): 3200 A
- Rated permanent current at AC-21, 400 V (EF009165): 3200 A
- Number of poles (EF001391): 4
- Motor drive optional (EF007386): Yes
- Motor drive integrated (EF006697): No
- Voltage release optional (EF007491): Yes
- Device construction (EF008240): Built-in device slide-in technique (withdrawable)
More info
▲b'
General Information
E4.2V MS/DC-E 3200A 1500V 4p W MP
1SDA115424R1
8056221075107
E4.2V MS/DC-E 3200A 1500V 4p W MP
Emax 2 switch-disconnector E4.2V MS/DC-E 3200A 1500V IEC four poles moving part
Ordering
1 piece
85362090
Italy (IT)
Popular Downloads
Dimensions
510 mm
371 mm
270 mm
85 kg
Technical
12000 V
1500 V
1500 V DC
100 kA
800 W
IEC
4
Certificates and Declarations (Document Number)
Container Information
1 piece
515 mm
785 mm
600 mm
100 kg
8056221075107
Classifications
Q
EC000216 - Switch disconnector
EC000216 - Switch disconnector
EC000216 - Switch disconnector
4. Large Equipment (Any External Dimension More Than 50 cm)
