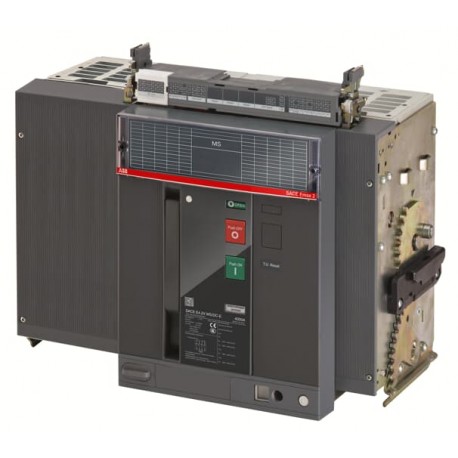

1SDA115423R1 ABB E4.2V MS/DC-E 2500A 1500V 4p W MP
1SDA115423R1
115423
ABB
1 Pcs.
Connectors > Switch disconnector
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
1SDA115423R1 ABB E4.2V MS/DC-E 2500A 1500V 4p W MP functions as an air circuit breaker and main switch designed for heavy-duty electrical distribution networks. Units of this type provide reliable circuit protection, manual or motorized isolation, and fault interruption capabilities in large commercial and industrial switchgear configurations.
Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 0
- Max. rated operation voltage Ue AC (EF007355): 1500 V
- Rated operating voltage (EF001435): 1500 V
- Rated permanent current Iu (EF001389): 2500 A
- Rated permanent current at AC-23, 400 V (EF011777): 2500 A
- Rated permanent current at AC-21, 400 V (EF009165): 2500 A
- Number of poles (EF001391): 4
- Motor drive optional (EF007386): Yes
- Motor drive integrated (EF006697): No
- Voltage release optional (EF007491): Yes
- Device construction (EF008240): Built-in device slide-in technique (withdrawable)
More info
▲b'
General Information
E4.2V MS/DC-E 2500A 1500V 4p W MP
1SDA115423R1
8056221075091
E4.2V MS/DC-E 2500A 1500V 4p W MP
Emax 2 switch-disconnector E4.2V MS/DC-E 2500A 1500V IEC four poles moving part
Ordering
1 piece
85362090
Italy (IT)
Popular Downloads
Dimensions
510 mm
371 mm
270 mm
85 kg
Technical
12000 V
1500 V
1500 V DC
100 kA
560 W
IEC
4
Certificates and Declarations (Document Number)
Container Information
1 piece
515 mm
785 mm
600 mm
100 kg
8056221075091
Classifications
Q
EC000216 - Switch disconnector
EC000216 - Switch disconnector
EC000216 - Switch disconnector
4. Large Equipment (Any External Dimension More Than 50 cm)
