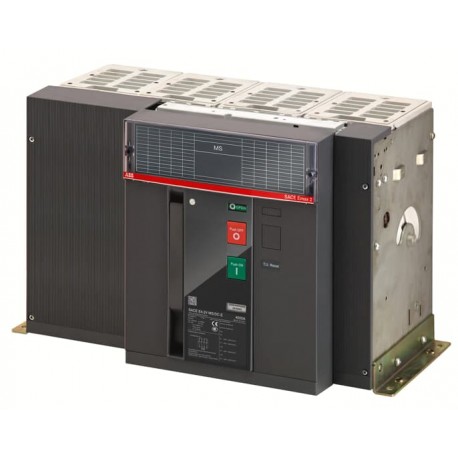

1SDA115420R1 ABB E4.2V MS/DC-E 4000A 1500V 4p F VR
1SDA115420R1
115420
ABB
1 Pcs.
E4.2V MS/DC-E 4000A 1500V 4p F VR
Connectors > Switch disconnector
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | e62dfe93-bb2f-44d2-a8bd-535ce550c2bf Italy |
| Simplified SCIP | 16954e37-c610-4f59-ba66-b43c06af8893 Germany |
| d4579b25-87b6-45bc-bdf7-6778a0f88f95 Belgium | |
| 22955afb-dc62-4e32-a8ac-d50054a827e7 France | |
| fd93c09d-12d8-41a8-b07c-b654edc5cf6d Spain | |
| ea2b337c-da12-465a-9e05-aeaa5c44ca67 Hungary | |
| 7962a689-4f30-4000-b0da-4df35d61f6a9 Germany | |
| 1a157780-6d04-49a8-b53a-29ada8b929ee Croatia | |
| 51e66c86-3d39-430d-a548-2f54a296cca5 Germany | |
| b118e5b5-5459-4731-be4b-284c2a4b6020 Germany | |
| 72974aed-5773-413c-9c0f-9608e4321908 Sweden | |
| 5871466e-f96d-4a98-ae0c-73a37996e8e5 Denmark | |
| 20f7a3e5-3b26-4240-a74f-14d1a777e51a Bulgaria | |
| dcb53e33-8208-4a26-831f-080c6abed298 Portugal | |
| 80b31894-0b03-492a-b99c-1e31e3a1762d Poland | |
| dbed8c3a-83c1-48a0-8437-31060b43d9f5 Poland | |
| e3542acb-b87f-4f1c-a71e-0db4faa32cda Sweden | |
| 56796700-017f-47b4-990f-fd22368aa5ad Norway | |
| e3a63211-711a-4f37-8233-7693adaaeb71 Germany | |
| 2ecf240e-023b-4bfd-986d-59508794fff3 Czech Republic | |
| ee08b55e-7e9f-454e-9060-083353fbf052 Hungary | |
| 1119e88d-01d6-4dfc-ac09-a80bf514164c Finland | |
| 6aba94c9-761e-407f-a9e2-4547d9dab2b8 Netherlands | |
| 9da11cc1-f798-47b8-9032-1a79f0a1bb9e Estonia | |
| 0c08ac41-6a74-4418-85e9-20bd767510a2 Belgium | |
| 89c3e5d2-c4b5-4494-b6b4-39aee7899dac Poland | |
| b9b80843-6901-48ef-8c8f-bf4e06eae836 France | |
| c9176c0c-5875-47fe-b0a8-730463e2cc0b Greece | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| EAN | 8056221075060 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 510 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 81 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 785 mm |
| Package Level 1 Gross Weight | 95 kg |
| Package Level 1 EAN | 8056221075060 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Switch Disconnector |
| Product Type | Switch Disconnector |
| Version | F |
| Technical | |
| Current Type | DC |
| Number of Poles | 4P |
| Power Loss | 620 W |
| Rated Current (In) | 4000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12000 V |
| Rated Insulation Voltage (Ui) | 1500 V |
| Rated Operational Voltage | 1500 V DC |
| Rated Short-time Withstand Current Low Voltage (Icw) | 100 kA |
| Rated Uninterrupted Current (Iu) | 4000 A |
| Rated Voltage (Ur) | 1500 V |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E4.2 |
| Terminal Connection Type | Rear flat Vertical |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200045D0201 |
| Declaration of Conformity - CE | 9AKK107992A0071 |
| Instructions and Manuals | 1SDH002083A1002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 1500 V |
| Rated operating voltage (EF001435) | 1500 V |
| Rated permanent current Iu (EF001389) | 4000 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 4000 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 4000 A |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Other |
| Type of control element (EF006976) | Push button |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP30 |
| Degree of protection (NEMA) (EF011959) | Other |
