ABB 1SDA115416R1 1SDA115416R1 ABB E4.2V MS/DC-E 1600A 1500V 4p F VR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

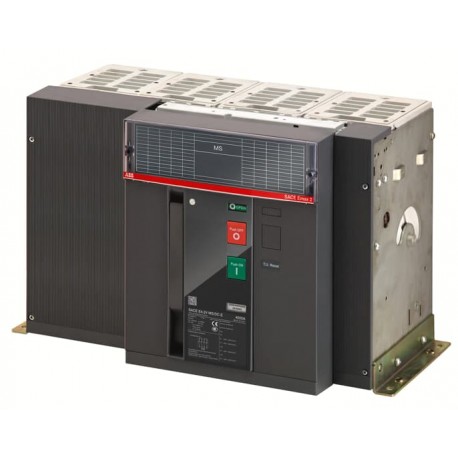

1SDA115416R1 ABB E4.2V MS/DC-E 1600A 1500V 4p F VR

1SDA115416R1

115416

ABB

1 Pcs.

E4.2V MS/DC-E 1600A 1500V 4p F VR Emax 2 switch-disconnector E4.2V MS/DC-E 1600A 1500V IEC four poles fixed vertical rear terminals

Connectors > Switch disconnector
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 1SDA115416R1 ABB E4.2V MS/DC-E 1600A 1500V 4p F VR is a robust high-capacity switch designed for heavy industrial power distribution networks. Heavy-duty disconnectors of this type are typically implemented to safely isolate electrical circuits and manage high current loads during maintenance or emergency operations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 0
  • Max. rated operation voltage Ue AC (EF007355): 1500 V
  • Rated operating voltage (EF001435): 1500 V
  • Rated permanent current Iu (EF001389): 1600 A
  • Rated permanent current at AC-23, 400 V (EF011777): 1600 A
  • Rated permanent current at AC-21, 400 V (EF009165): 1600 A
  • Number of poles (EF001391): 4
  • Motor drive optional (EF007386): Yes
  • Motor drive integrated (EF006697): No
  • Voltage release optional (EF007491): Yes
  • Device construction (EF008240): Built-in device fixed built-in technique

More info

▲

b'

General Information

Extended Product Type:
E4.2V MS/DC-E 1600A 1500V 4p F VR
Product ID:
1SDA115416R1
EAN:
8056221075022
Catalog Description:
E4.2V MS/DC-E 1600A 1500V 4p F VR
Long Description:
Emax 2 switch-disconnector E4.2V MS/DC-E 1600A 1500V IEC four poles fixed vertical rear terminals
\n

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090
Country of Origin:
Italy (IT)

Popular Downloads

Data Sheet, Technical Information:\n1SDC200045D0201
Instructions and Manuals:\n1SDH002083A1002

Dimensions

Product Net Width:
510 mm
Product Net Height:
371 mm
Product Net Depth / Length:
270 mm
Product Net Weight:
81 kg

Technical

Rated Impulse Withstand Voltage (Uimp):
12000 V
Rated Insulation Voltage (Ui):
1500 V
Rated Operational Voltage:
1500 V DC
Rated Short-time Withstand Current (Icw):
100 kA
Power Loss:
130 W
Standards:
IEC
Number of Poles:
4

Certificates and Declarations (Document Number)

Declaration of Conformity - CE:\n1SDH000165R0047
Instructions and Manuals:\n1SDH002083A1002

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
515 mm
Package Level 1 Depth / Length:
785 mm
Package Level 1 Height:
600 mm
Package Level 1 Gross Weight:
95 kg
Package Level 1 EAN:
8056221075022

Classifications

Object Classification Code:
Q
ETIM 6:
EC000216 - Switch disconnector
ETIM 7:
EC000216 - Switch disconnector
ETIM 8:
EC000216 - Switch disconnector
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
\n
'

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
