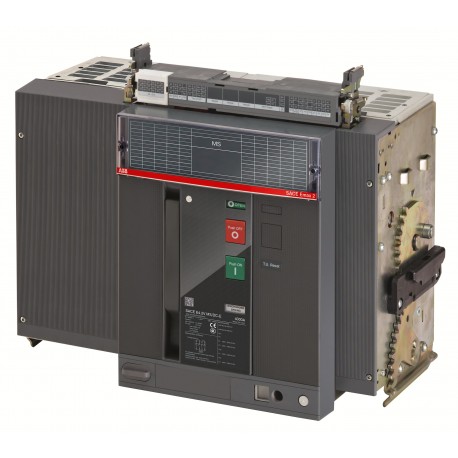

ABB 1SDA115415R1 1SDA115415R1 ABB E4.2H MS/DC-E 4000A 1500V 4p W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA115415R1 ABB E4.2H MS/DC-E 4000A 1500V 4p W MP

1SDA115415R1

115415

ABB

1 Pcs.

E4.2H MS/DC-E 4000A 1500V 4p W MP

Connectors > Switch disconnector
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPb32dc520-74e8-4dc3-a4ed-17802199f3e3 Italy
Simplified SCIP0ebde369-cbf2-49e6-b6c4-23d22a1ee102 Belgium
92dbeddf-2556-47af-99b6-a1f5ddb2fa22 Germany
e733a999-fa05-449f-bca7-ded046b83921 Sweden
adab6019-6fe1-45fe-9055-20816346e9ec Germany
4c5faa8d-1d52-41bf-847a-c1716eea49f1 Hungary
abaf2f03-d376-4db2-bacd-848f4498cc61 Spain
38691784-4d58-462e-a43f-d85a3784b2d4 France
9de40415-d3aa-404c-8b35-a2c19700d465 Germany
e7180084-6592-46c2-b88c-9968a73e896e Poland
a222a5ec-93a7-4849-8f95-bbd29714becd Denmark
086ac0d5-f86a-42b1-a4a4-d43f69104115 Belgium
7536df84-1f5b-4bcf-9d6a-f061ecce5673 Germany
f60e7cbf-8d59-4a65-af51-6af555c466cc Finland
dce67b09-3805-4b89-be24-02eacd89855e Norway
34ed99ef-1def-4261-85ba-2ba53fad2a2b Hungary
542efaed-a286-4e75-9c50-2c0457b6feff Netherlands
455cf338-fece-4265-bc62-7227daa8d7fe Poland
71933201-1534-4435-b6fb-4893d931efc4 Czech Republic
6edeefd8-0c83-4d06-946e-3d6fc0a92930 Germany
70105a66-dd4d-4460-91a2-580c7a72d602 Croatia
249a6a1f-d4ce-49c9-abf6-5008d475ce45 Estonia
e338d26f-e987-4db7-9682-a4d2c22443e4 Poland
d1318a12-4c50-4479-bf53-5159a7355c2e Bulgaria
a2e7ba20-633a-4e39-80cd-e0f9626d03ee Sweden
0a96ceb6-7866-4932-814f-f2d3be7358fc Greece
e0cf46e7-1980-4a86-88a1-accc13af9be3 Portugal
90a3537d-bef1-4fac-bfc1-b54c6103ffa1 France
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaPCHW00A00000000000XX
EAN8056221075015
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width510 mm
Product Net Height371 mm
Product Net Depth / Length270 mm
Product Net Weight85 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length785 mm
Package Level 1 Gross Weight100 kg
Package Level 1 EAN8056221075015
Additional Information
Product Main TypeSACE Emax 2
Product NameSwitch Disconnector
Product TypeSwitch Disconnector
VersionW
Technical
Current TypeDC
Number of Poles4P
Power Loss1200 W
Rated Current (In)4000 A
Rated Impulse Withstand Voltage (Uimp)12000 V
Rated Insulation Voltage (Ui)1500 V
Rated Operational Voltage1500 V DC
Rated Short-time Withstand Current Low Voltage (Icw)85 kA
Rated Uninterrupted Current (Iu)4000 A
Rated Voltage (Ur)1500 V
Short-Circuit Performance LevelN
StandardsIEC
Sub-typeE4.2
Certificates and Declarations
Data Sheet, Technical Information1SDC200045D0201
Declaration of Conformity - CE9AKK107992A0071
Instructions and Manuals1SDH002083A1002
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27371403

ETIM for 1SDA115415R1 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) No
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 0
Max. rated operation voltage Ue AC (EF007355) 1500 V
Rated operating voltage (EF001435) 1500 V
Rated permanent current Iu (EF001389) 4000 A
Rated permanent current at AC-23, 400 V (EF011777) 4000 A
Rated permanent current at AC-21, 400 V (EF009165) 4000 A
Number of poles (EF001391) 4
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) Yes
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) Yes
Device construction (EF008240) Built-in device slide-in technique (withdrawable)
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) Yes
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Other
Type of control element (EF006976) Push button
Interlockable (EF006281) Yes
Type of electrical connection of main circuit (EF006819) Bolt connection
Degree of protection (IP), front side (EF003118) IP30
Degree of protection (NEMA) (EF011959) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
