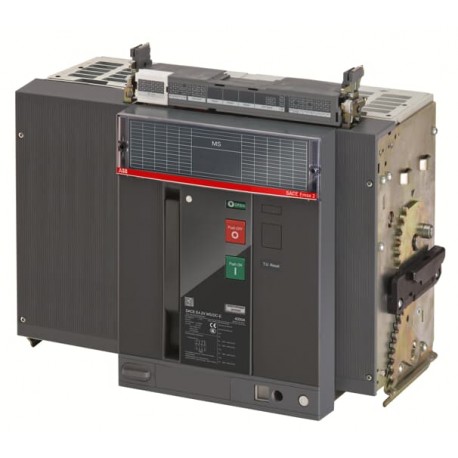

1SDA115413R1 ABB E4.2H MS/DC-E 2500A 1500V 4p W MP

1SDA115413R1

115413

ABB

1 Pcs.

E4.2H MS/DC-E 2500A 1500V 4p W MP Emax 2 switch-disconnector E4.2H MS/DC-E 2500A 1500V IEC four poles moving part
