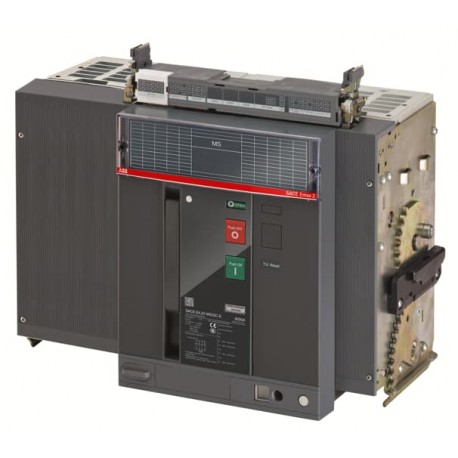

ABB 1SDA115412R1 1SDA115412R1 ABB E4.2H MS/DC-E 2000A 1500V 4p W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA115412R1 ABB E4.2H MS/DC-E 2000A 1500V 4p W MP

1SDA115412R1

115412

ABB

1 Pcs.

E4.2H MS/DC-E 2000A 1500V 4p W MP Emax 2 switch-disconnector E4.2H MS/DC-E 2000A 1500V IEC four poles moving part

Connectors > Switch disconnector
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

b'

General Information

Extended Product Type:
E4.2H MS/DC-E 2000A 1500V 4p W MP
Product ID:
1SDA115412R1
EAN:
8056221074988
Catalog Description:
E4.2H MS/DC-E 2000A 1500V 4p W MP
Long Description:
Emax 2 switch-disconnector E4.2H MS/DC-E 2000A 1500V IEC four poles moving part
\n

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090
Country of Origin:
Italy (IT)

Popular Downloads

Data Sheet, Technical Information:\n1SDC200045D0201
Instructions and Manuals:\n1SDH002083A1002

Dimensions

Product Net Width:
510 mm
Product Net Height:
371 mm
Product Net Depth / Length:
270 mm
Product Net Weight:
85 kg

Technical

Rated Impulse Withstand Voltage (Uimp):
12000 V
Rated Insulation Voltage (Ui):
1500 V
Rated Operational Voltage:
1500 V DC
Rated Short-time Withstand Current (Icw):
85 kA
Power Loss:
360 W
Standards:
IEC
Number of Poles:
4

Certificates and Declarations (Document Number)

Declaration of Conformity - CE:\n1SDH000165R0047
Instructions and Manuals:\n1SDH002083A1002

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
515 mm
Package Level 1 Depth / Length:
785 mm
Package Level 1 Height:
600 mm
Package Level 1 Gross Weight:
100 kg
Package Level 1 EAN:
8056221074988

Classifications

Object Classification Code:
Q
ETIM 6:
EC000216 - Switch disconnector
ETIM 7:
EC000216 - Switch disconnector
ETIM 8:
EC000216 - Switch disconnector
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
\n
'

ETIM for 1SDA115412R1 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) No
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 0
Max. rated operation voltage Ue AC (EF007355) 1500 V
Rated operating voltage (EF001435) 1500 V
Rated permanent current Iu (EF001389) 2000 A
Rated permanent current at AC-23, 400 V (EF011777) 2000 A
Rated permanent current at AC-21, 400 V (EF009165) 2000 A
Number of poles (EF001391) 4
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) Yes
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) Yes
Device construction (EF008240) Built-in device slide-in technique (withdrawable)
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) Yes
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Other
Type of control element (EF006976) Push button
Interlockable (EF006281) Yes
Type of electrical connection of main circuit (EF006819) Bolt connection
Degree of protection (IP), front side (EF003118) IP30
Degree of protection (NEMA) (EF011959) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
