ABB 1SDA115409R1 1SDA115409R1 ABB E4.2H MS/DC-E 3200A 1500V 4p F VR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA115409R1 ABB E4.2H MS/DC-E 3200A 1500V 4p F VR

1SDA115409R1

115409

ABB

1 Pcs.

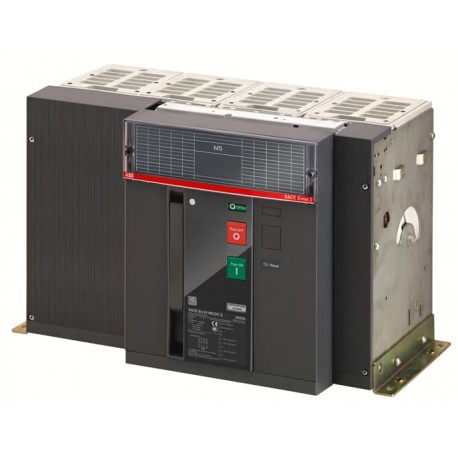

E4.2H MS/DC-E 3200A 1500V 4p F VR Emax 2 switch-disconnector E4.2H MS/DC-E 3200A 1500V IEC four poles fixed vertical rear terminals

Connectors > Switch disconnector
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A high-capacity circuit breaker device like the 1SDA115409R1 ABB E4.2H MS/DC-E 3200A 1500V 4p F VR protects massive direct current electrical infrastructures from overloads and short circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 0
  • Max. rated operation voltage Ue AC (EF007355): 1500 V
  • Rated operating voltage (EF001435): 1500 V
  • Rated permanent current Iu (EF001389): 3200 A
  • Rated permanent current at AC-23, 400 V (EF011777): 3200 A
  • Rated permanent current at AC-21, 400 V (EF009165): 3200 A
  • Number of poles (EF001391): 4
  • Motor drive optional (EF007386): Yes
  • Motor drive integrated (EF006697): No
  • Voltage release optional (EF007491): Yes
  • Device construction (EF008240): Built-in device fixed built-in technique

More info

▲

b'

General Information

Extended Product Type:
E4.2H MS/DC-E 3200A 1500V 4p F VR
Product ID:
1SDA115409R1
EAN:
8056221074957
Catalog Description:
E4.2H MS/DC-E 3200A 1500V 4p F VR
Long Description:
Emax 2 switch-disconnector E4.2H MS/DC-E 3200A 1500V IEC four poles fixed vertical rear terminals
\n

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090
Country of Origin:
Italy (IT)

Popular Downloads

Data Sheet, Technical Information:\n1SDC200045D0201
Instructions and Manuals:\n1SDH002083A1002

Dimensions

Product Net Width:
510 mm
Product Net Height:
371 mm
Product Net Depth / Length:
270 mm
Product Net Weight:
81 kg

Technical

Rated Impulse Withstand Voltage (Uimp):
12000 V
Rated Insulation Voltage (Ui):
1500 V
Rated Operational Voltage:
1500 V DC
Rated Short-time Withstand Current (Icw):
85 kA
Power Loss:
500 W
Standards:
IEC
Number of Poles:
4

Certificates and Declarations (Document Number)

Declaration of Conformity - CE:\n1SDH000165R0047
Instructions and Manuals:\n1SDH002083A1002

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
515 mm
Package Level 1 Depth / Length:
785 mm
Package Level 1 Height:
600 mm
Package Level 1 Gross Weight:
95 kg
Package Level 1 EAN:
8056221074957

Classifications

Object Classification Code:
Q
ETIM 6:
EC000216 - Switch disconnector
ETIM 7:
EC000216 - Switch disconnector
ETIM 8:
EC000216 - Switch disconnector
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
\n
'

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
