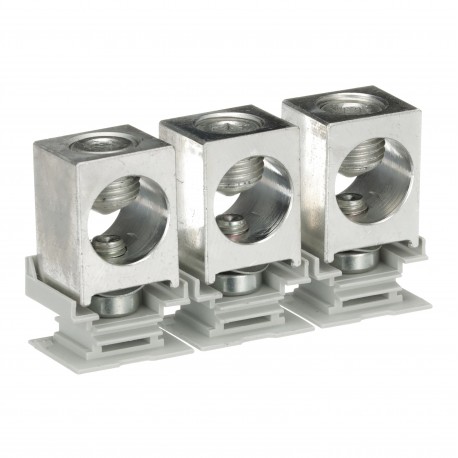

ABB 1SDA114847R1 1SDA114847R1 ABB KIT FCCuAl3/0-350kcmilXT4 3pcsUL/CSA new View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA114847R1 ABB KIT FCCuAl3/0-350kcmilXT4 3pcsUL/CSA new

1SDA114847R1

1SDA114847R1

ABB

1 Pcs.

KIT FCCuAl3/0-350kcmilXT4 3pcsUL/CSA new

Automation > Connection vane/phase spreader
Molded Case Circuit Breakers ≤ 250 A Xtmax

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb 1SDA114847R1 kit front connection accessory provides reliable lug termination for large electrical cables connecting to molded case circuit breakers. These components are essential in industrial switchboards for maintaining safe and stable power distribution pathways.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KXT4CUAL4-3PC
  • EAN: 8056221054508
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 0.6 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 155 mm
  • Package Level 1 Height: 185 mm
  • Package Level 1 Depth / Length: 160 mm
  • Package Level 1 Gross Weight: 0.65 kg

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKXT4CUAL4-3PC
EAN8056221054508
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.6 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width155 mm
Package Level 1 Height185 mm
Package Level 1 Depth / Length160 mm
Package Level 1 Gross Weight0.65 kg
Additional Information
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT4
Suitable for Product ClassSACE Tmax XT
Technical
Configuration TypeLoose or configurable
Number of Poles3P
StandardsUL489
Sub-typeXT4
Terminal Connection TypeFront for Copper-Aluminium Cables
Certificates and Declarations
Data Sheet, Technical Information1SDC210200D0206
1SDC210199D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH000722R0826
External Classifications and Standards
ETIM 9EC002019 - Connection vane/phase spreader
ETIM 10EC002019 - Connection vane/phase spreader
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371305
