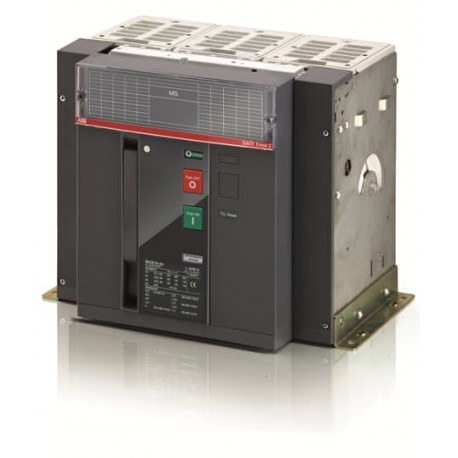

1SDA114784R1 ABB E4.2H/E9/VF MS 4000 3p FHR
1SDA114784R1
114784
ABB
1 Pcs.
E4.2H/E9/VF MS 4000 3p FHR
Connectors > Switch disconnector
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | beb6a08c-130f-4884-9dfd-98a8003f62a4 Italy |
| Simplified SCIP | e73bb20f-91f1-4a1d-a373-f2ac519f8a24 Germany |
| 3cff65ef-dfab-44cd-920a-aa5877fadaf8 Netherlands | |
| 7c8cb0b3-1849-44fe-a126-cc52d1fe6f7e Germany | |
| 6da91e13-1ca8-4e76-9600-0e5f35a154a6 Poland | |
| bd4d569f-4816-4762-a877-5ca455b1827d Denmark | |
| c64e451c-5947-4805-91d0-a7f67aa367e0 Norway | |
| 2d2564a8-f9bc-4a5e-b655-ebd61ac860f4 Finland | |
| 33c57d1c-44f5-466b-91d0-1fc6ba9f2fc6 Germany | |
| e7361c24-be0f-4e2d-a539-04b0bad42587 Croatia | |
| 18703e15-061d-4324-9f9d-25d7f8295e51 Czech Republic | |
| da016cb4-a612-42c6-aa71-1f6264491613 Poland | |
| 25ae5cd4-9154-41c7-806c-48f6a4cae58f Netherlands | |
| 3a6cfcc9-948c-4c13-b3f4-ec9ec9056ce1 Netherlands | |
| 75d5a66b-e0b1-4471-9a93-92985d2a01f4 Estonia | |
| 9816e3fe-08fd-4c5b-93dc-4326812bc8b4 Greece | |
| 2e0b6770-f462-4d30-ba2f-bbb4b12801d3 Portugal | |
| b4e4e699-bd5e-4988-a8a8-922e6f80238e Bulgaria | |
| 18b20ad1-cd65-4e40-a843-cc36038eb80b Sweden | |
| 4b62b4be-1ab0-440a-b984-961d85360fb7 Poland | |
| f1b31b16-ba3c-4df3-9e45-c7ec46115304 France | |
| 1f761087-698b-4786-83cb-fd3a842d274f Sweden | |
| 9b0616f8-0cf1-460d-8ce9-082f5a48e2b9 Germany | |
| 1126aead-f936-458f-9a4d-de443213951e Germany | |
| 7ba0734c-3f3e-48d4-a3d0-dc63d2b44c8c France | |
| 09201700-d8ed-4c81-92b0-843a69a0bcc7 Netherlands | |
| c70ef71c-8bd9-4f89-96cb-156bd67d69b0 Spain | |
| 2f479daa-7f6e-4efc-bc5b-7224daf6f094 Netherlands | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| EAN | 8056221053709 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 384 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 56 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 63 kg |
| Package Level 1 EAN | 8056221053709 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Switch Disconnector |
| Product Type | Switch-disconnector |
| Version | F |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue = 800 V 500 cycle |
| 30 cycles per hour | |
| Mechanical Durability | 15000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 465 W |
| Rated Current (In) | 4000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 800 V |
| Rated Voltage (Ur) | 800 V |
| Remarks | VF |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | E4.2 |
| Terminal Connection Type | Rear flat Horizontal |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200097B0201 |
| 1SDC200074B0201 | |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 800 V |
| Rated operating voltage (EF001435) | 800 V |
| Rated permanent current Iu (EF001389) | 4000 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 4000 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 4000 A |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Other |
| Type of control element (EF006976) | Push button |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP30 |
| Degree of protection (NEMA) (EF011959) | Other |
