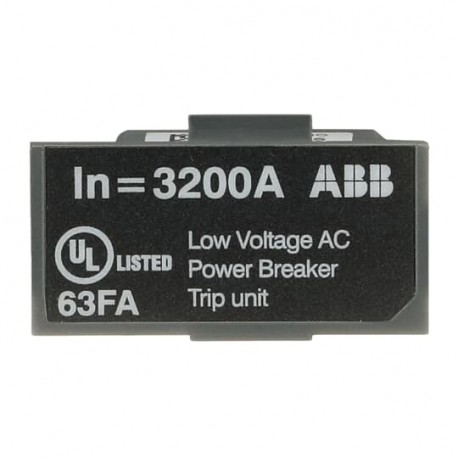

1SDA112854R1 ABB Rating Loose Plug 3200 E4.2.. E6.2 (N)
1SDA112854R1
112854
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A rating loose plug for 3200 frames from ABB, part number 1SDA112854R1 (E4.2 to E6.2), allows precise current rating adjustments for air circuit breakers. Protective trip units rely on interchangeable rating plugs to configure nominal current thresholds safely to match specific transformer and feeder requirements. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: ZED3200RP
- EAN: 8056221000147
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Width: 200 mm
- Product Net Height: 10 mm
- Product Net Depth / Length: 145 mm
- Product Net Weight: 0.1 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 145 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZED3200RP |
| EAN | 8056221000147 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 200 mm |
| Product Net Height | 10 mm |
| Product Net Depth / Length | 145 mm |
| Product Net Weight | 0.1 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 145 mm |
| Package Level 1 Height | 10 mm |
| Package Level 1 Depth / Length | 200 mm |
| Package Level 1 Gross Weight | 0.1 kg |
| Package Level 1 EAN | 8056221000147 |
| Additional Information | |
| Product Main Type | Accessories for Emax 2 |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | E4.2;E6.2 |
| Suitable for Product Class | Emax 2 |
| Technical | |
| Configuration Type | Loose or configurable |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5546 |
| 9AKK106713A5902 | |
| 9AKK106713A5545 | |
| 9AKK106713A5544 | |
| Instructions and Manuals | 1SDH001000R0510 |
| External Classifications and Standards | |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| Object Classification Code | Q |
| UNSPSC | 39122221 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371392 |
