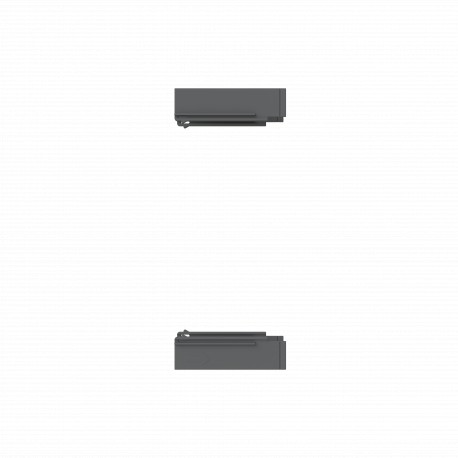

ABB 1SDA107805R1 1SDA107805R1 ABB PB 25mm 4pcs XT5 3p UL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA107805R1 ABB PB 25mm 4pcs XT5 3p UL

1SDA107805R1

1SDA107805R1

ABB

1 Pcs.

PB 25mm 4pcs XT5 3p UL

Automation > Phase barrier plate
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered to meet UL requirements, the Abb 1SDA107805R1 phase barrier set serves to isolate electrical poles in power control frameworks. Such isolation elements are critical in high-voltage panels to prevent cross-phase arcs and ensure adherence to safety regulations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KXT5PB25UL-3
  • EAN: 8056221028691
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 0.105 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 160 mm
  • Package Level 1 Height: 20 mm
  • Package Level 1 Depth / Length: 250 mm
  • Package Level 1 Gross Weight: 0.111 kg

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKXT5PB25UL-3
EAN8056221028691
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.105 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width160 mm
Package Level 1 Height20 mm
Package Level 1 Depth / Length250 mm
Package Level 1 Gross Weight0.111 kg
Package Level 1 EAN8056221028691
Additional Information
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT5
Suitable for Product ClassSACE Tamx XT
Technical
Configuration TypeLoose or configurable
Number of Poles3P
Order Multiple1 piece
StandardsUL489
Certificates and Declarations
Data Sheet, Technical Information1SDC210200D0206
1SDC210199D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH002012A1602
External Classifications and Standards
ETIM 9EC002273 - Phase barrier plate
ETIM 10EC002273 - Phase barrier plate
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27400614
