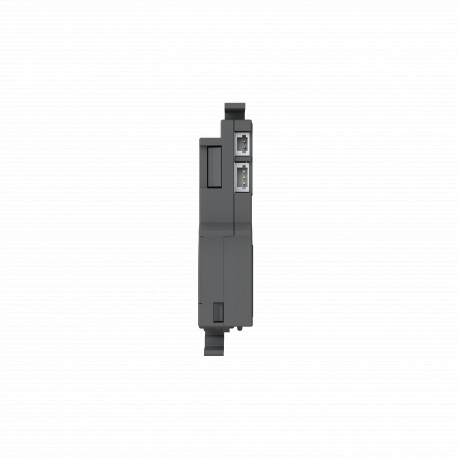

1SDA105176R1 ABB EKIP COM MODBUS RS-485 XT2-XT4 INT W
1SDA105176R1
105176
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA105176R1 EKIP COM MODBUS RS-485 XT2-XT4 INT W serves as a dedicated communication module that enables automated circuit breakers to interface with industrial supervision and control networks. By utilizing standardized protocols like Modbus, these interfaces allow operators to monitor energy parameters and system diagnostics remotely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Ambient Air Temperature: Operation -40 ... 125 °C
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: KXTCCOMWMBRS
- E-Number (Norway): 4381558
- EAN: 8015644072681
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.2 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 150 mm
- Package Level 1 Height: 30 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 125 °C |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KXTCCOMWMBRS |
| E-Number (Norway) | 4381558 |
| EAN | 8015644072681 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.2 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 150 mm |
| Package Level 1 Height | 30 mm |
| Package Level 1 Depth / Length | 200 mm |
| Package Level 1 Gross Weight | 0.3 kg |
| Package Level 1 EAN | 8015644072681 |
| Additional Information | |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT2, XT4 |
| Suitable for Product Class | SACE Tmax XT |
| Technical | |
| Configuration Type | Loose or Configurable |
| Order Multiple | 1 piece |
| Standards | IEC60947-2 |
| UL489 | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| 1SDC210200D0206 | |
| 1SDC210199D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH002009A1511 |
| 1SDH002009A1513 | |
| External Classifications and Standards | |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| IDEA Granular Category Code (IGCC) | 3587 >> Fieldbus, decentr. periphery - communication module |
| UNSPSC | 32151802 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371390 |
