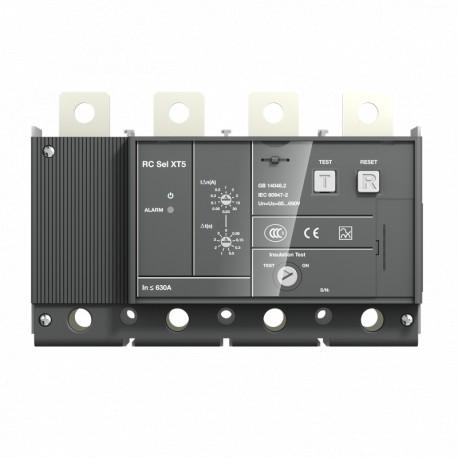

1SDA105131R1 ABB RC Sel x XT5 4p
1SDA105131R1
105131
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manufactured by Abb under part number 1SDA105131R1, this RC Sel x XT5 4p unit provides specialized residual current monitoring and protection for multi-pole circuit breakers. Earth leakage and residual current devices are widely applied in industrial switchboards to safeguard equipment and personnel against ground fault hazards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: KXT5RCSEL-4
- E-Number (Norway): 4381617
- EAN: 8015644072230
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 2.5 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 346 mm
- Package Level 1 Height: 148 mm
- Package Level 1 Depth / Length: 231 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KXT5RCSEL-4 |
| E-Number (Norway) | 4381617 |
| EAN | 8015644072230 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 2.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 346 mm |
| Package Level 1 Height | 148 mm |
| Package Level 1 Depth / Length | 231 mm |
| Package Level 1 Gross Weight | 3.5 kg |
| Package Level 1 EAN | 8015644072230 |
| Additional Information | |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT5 |
| Suitable for Product Class | SACE Tamx XT |
| Technical | |
| Configuration Type | Loose or configurable |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Standards | IEC60947-2 |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 2TFH000039A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| IDEA Granular Category Code (IGCC) | 4878 >> Residual current release for power circuit breaker |
| UNSPSC | 39121601 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371390 |
