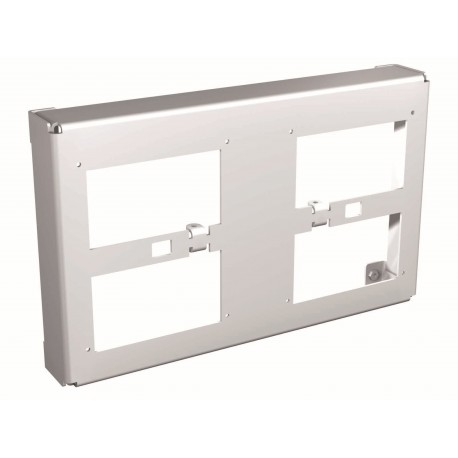

ABB 1SDA105118R1 1SDA105118R1 ABB MIR-H XT6 LOCK. MEC. TRASE. H 2 INTERR. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA105118R1 ABB MIR-H XT6 LOCK. MEC. TRASE. H 2 INTERR.

1SDA105118R1

105118

ABB

1 Pcs.

MIR-H XT6 LOCK. MEC. TRASE. H 2 INTERR. MIR-H XT6 MECH,LOCK REAR HO. 2 C.BREAKER

Automation > Mechanic interlock for switch
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ABB 1SDA105118R1 is a mechanical locking accessory built to secure circuit breaker frames in industrial power distribution panels. Lockout mechanisms protect maintenance personnel by preventing accidental re-energization of isolated circuits during service windows. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KXT6MIRH
  • E-Number (Norway): 4381694
  • EAN: 8056221027502
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 5.432 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 370 mm
  • Package Level 1 Height: 85 mm
  • Package Level 1 Depth / Length: 520 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKXT6MIRH
E-Number (Norway)4381694
EAN8056221027502
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight5.432 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width370 mm
Package Level 1 Height85 mm
Package Level 1 Depth / Length520 mm
Package Level 1 Gross Weight5.718 kg
Package Level 1 EAN8056221027502
Additional Information
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT6
Suitable for Product ClassSACE Tamx XT
Technical
Configuration TypeLoose or configurable
Order Multiple1 piece
StandardsIEC60947-2
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
1SDC210200D0206
1SDC210199D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals2TFH000053A1001
External Classifications and Standards
ETIM 9EC001044 - Mechanic interlock for switch
ETIM 10EC001044 - Mechanic interlock for switch
IDEA Granular Category Code (IGCC)4416 >> Enclosure plates or covers
UNSPSC39121302
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371303
