View larger
Images are for illustrative purposes only. Please refer to data sheet for details

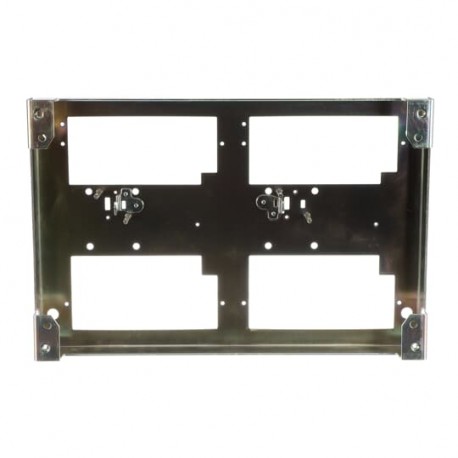

1SDA105117R1 ABB MIR-H XT5 LOCK. MEC. TRASE. H 2 INTER.
1SDA105117R1
105117
ABB
1 Pcs.
MIR-H XT5 LOCK. MEC. TRASE. H 2 INTER.
MIR-H XT5 MECH,LOCK REAR HO. 2 C.BREAKER
Automation > Mechanic interlock for switch
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KXT5MIRH |
| E-Number (Norway) | 4381693 |
| EAN | 8056221027496 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 5.432 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 370 mm |
| Package Level 1 Height | 85 mm |
| Package Level 1 Depth / Length | 520 mm |
| Package Level 1 Gross Weight | 5.718 kg |
| Package Level 1 EAN | 8056221027496 |
| Additional Information | |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT5 |
| Suitable for Product Class | SACE Tamx XT |
| Technical | |
| Configuration Type | Loose or configurable |
| Order Multiple | 1 piece |
| Standards | IEC60947-2 |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| 1SDC210200D0206 | |
| 1SDC210199D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 2TFH000032A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC001044 - Mechanic interlock for switch |
| ETIM 10 | EC001044 - Mechanic interlock for switch |
| IDEA Granular Category Code (IGCC) | 4416 >> Enclosure plates or covers |
| UNSPSC | 39121302 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371303 |
| Feature Name | Feature Value |
|---|---|
| Auxiliary contacts, extendable (EF001450) | No |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
