View larger
Images are for illustrative purposes only. Please refer to data sheet for details

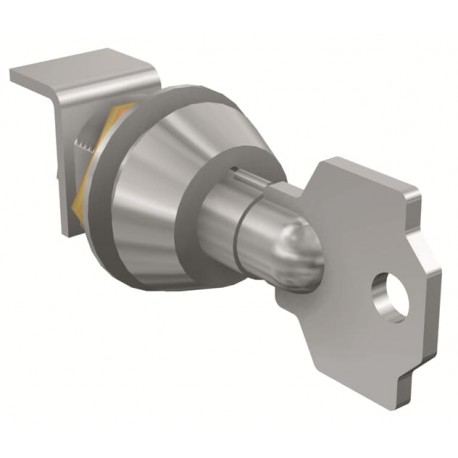

1SDA105079R1 ABB RHL XT4.. XT7 K.LO. RONIS EQ. FEL.xPAN.PU.
1SDA105079R1
1SDA105079R1
ABB
1 Pcs.
RHL XT4.. XT7 K.LO. RONIS EQ. FEL.xPAN.PU.
RHL XT5..XT7 Ronis key lock open/closed, different keys on the panel door
Automation > Accessories/spare parts for low-voltage switch technology
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 22 July 2019 |
| Conflict Minerals Notification Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| classification | |
| Order Code USA & Canada | KXTKLPNLDR |
| E Number (Norway) | 4381285 |
| Ean | 8015644071714 |
| Minimum order quantity | 1 piece |
| Tariff code | 85389099 |
| Dimensions | |
| Product Width | 150 mm |
| Product height | 20 mm |
| Product length | 200 mm |
| Product Weight | 0.048 kg |
| Packaging Information | |
| Packaging Level 1 Units | Box 1 piece |
| Packaging Level 1 Width | 150 mm |
| Packaging Level 1 High | 20 mm |
| Level 1 Long Packaging | 200 mm |
| Packaging Level 1 Weight | 0.051 kg |
| EAN Level 1 Packaging | 8015644071714 |
| Additional information | |
| Main Product Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable for | XT5 |
| XT6 | |
| XT7 | |
| Suitable for product class | SACE Tmax XT |
| Technique | |
| Configuration Type | Loose or configurable |
| Multiple Order | 1 piece |
| Standards | IEC60947-2 |
| Certificates and Declarations (Document Number) | |
| Technical data, technical information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and manuals | 2TFH000043A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| UNSPSC | 39122221 |
| WEEE Category | 5. Small equipment (no external dimension more than 50cm) |
| E-class | V11.1 : 27371390 |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
