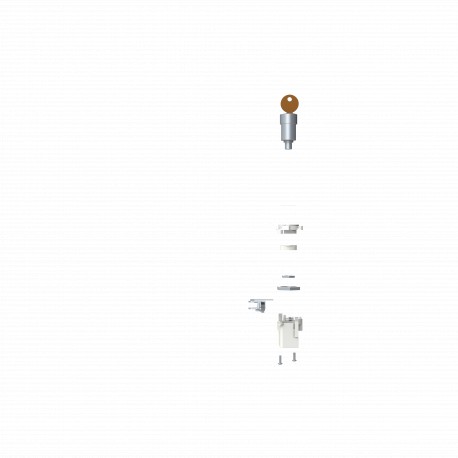

1SDA105069R1 ABB KLC-A Lock. STI XT5-XT6 open key
1SDA105069R1
105069
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA105069R1 KLC-A lock. sti xt5-xt6 open key secures molded case circuit breakers in the open configuration to protect service technicians during system interventions. Mechanical key locks integrate directly into breaker faceplates to prevent accidental closing and enforce strict lockout-tagout procedures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: KXTFKLCASTI
- E-Number (Norway): 4381260
- EAN: 8056221027373
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.1 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 200 mm
- Package Level 1 Height: 50 mm
- Package Level 1 Depth / Length: 250 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KXTFKLCASTI |
| E-Number (Norway) | 4381260 |
| EAN | 8056221027373 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.1 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 200 mm |
| Package Level 1 Height | 50 mm |
| Package Level 1 Depth / Length | 250 mm |
| Package Level 1 Gross Weight | 0.1 kg |
| Package Level 1 EAN | 8056221027373 |
| Additional Information | |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT5 |
| XT6 | |
| Suitable for Product Class | SACE Tamx XT |
| Technical | |
| Configuration Type | Loose or configurable |
| Order Multiple | 1 piece |
| Standards | IEC60947-2 |
| UL489 | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| 1SDC210200D0206 | |
| 1SDC210199D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH002011A1606 |
| External Classifications and Standards | |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| UNSPSC | 39122221 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371390 |
