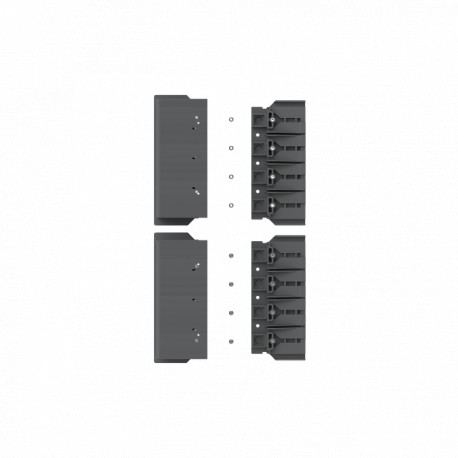

1SDA105038R1 ABB HTC-ES BS coversborne aisl. After. XT5 4p
1SDA105038R1
105038
ABB
1 Pcs.
HTC-ES_BS coversborne aisl. After. XT5 4p
HTC-ES_BS with back shield XT5 4p
Automation > Cover cap for rail terminal bar
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB high terminal cover with integrated insulation busbar supports shields four-pole XT5 circuit breaker connections. It increases safety by enclosing conductive interfaces within industrial enclosures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: KXT5HTCESBS-4
- E-Number (Norway): 4381459
- EAN: 8015644071301
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Width: 130 mm
- Product Net Height: 135 mm
- Product Net Depth / Length: 145 mm
- Product Net Weight: 0.29 kg
- Package Level 1 Units: box 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KXT5HTCESBS-4 |
| E-Number (Norway) | 4381459 |
| EAN | 8015644071301 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 130 mm |
| Product Net Height | 135 mm |
| Product Net Depth / Length | 145 mm |
| Product Net Weight | 0.29 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 130 mm |
| Package Level 1 Height | 135 mm |
| Package Level 1 Depth / Length | 145 mm |
| Package Level 1 Gross Weight | 0.305 kg |
| Package Level 1 EAN | 8015644071301 |
| Additional Information | |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT5 |
| Suitable for Product Class | SACE Tamx XT |
| Technical | |
| Configuration Type | Loose or configurable |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Standards | IEC60947-2 |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| 1SDC210200D0206 | |
| 1SDC210199D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH002011A1622 |
| External Classifications and Standards | |
| ETIM 9 | EC002268 - Cover cap for rail terminal bar |
| ETIM 10 | EC002268 - Cover cap for rail terminal bar |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| UNSPSC | 39122221 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27400635 |
