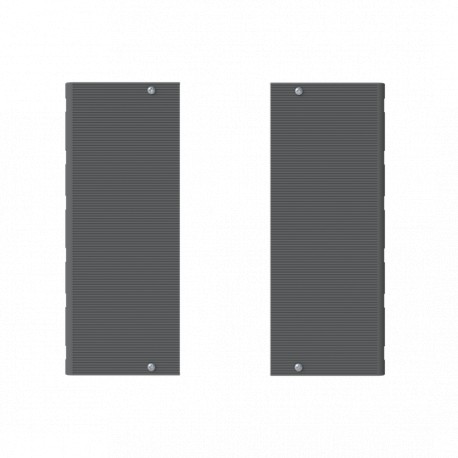

ABB 1SDA105027R1 1SDA105027R1 ABB HTC XT6 3p View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA105027R1 ABB HTC XT6 3p

1SDA105027R1

105027

ABB

1 Pcs.

HTC XT6 3p

Automation > Cover cap for rail terminal bar
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Prevent unintended access to live electrical connections by installing the 1SDA105027R1 ABB HTC XT6 3p. High terminal covers provide an insulated physical barrier over switchgear connection points to support safe operation in industrial electrical systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KXT6HTC-3
  • E-Number (Finland): 3642420
  • E-Number (Norway): 4381450
  • EAN: 8015644071196
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 0.29 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 130 mm
  • Package Level 1 Height: 135 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKXT6HTC-3
E-Number (Finland)3642420
E-Number (Norway)4381450
EAN8015644071196
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.29 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width130 mm
Package Level 1 Height135 mm
Package Level 1 Depth / Length145 mm
Package Level 1 Gross Weight0.305 kg
Package Level 1 EAN8015644071196
Additional Information
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT6
Suitable for Product ClassSACE Tamx XT
Technical
Configuration TypeLoose or configurable
Number of Poles3P
Order Multiple1 piece
StandardsIEC60947-2
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
1SDC210200D0206
1SDC210199D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH002011A1607
External Classifications and Standards
ETIM 9EC002268 - Cover cap for rail terminal bar
ETIM 10EC002268 - Cover cap for rail terminal bar
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
UNSPSC39122221
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27400635
