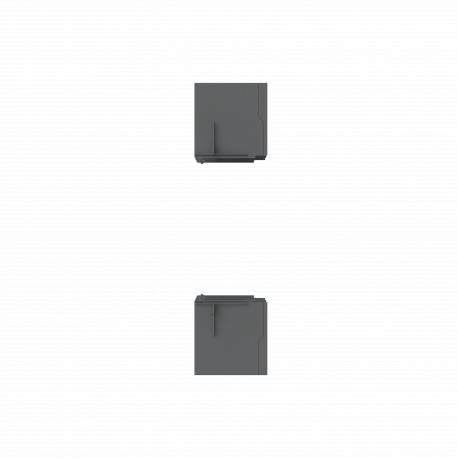

1SDA105003R1 ABB PB 100mm 6pcs XT5 4p SEP KIT. PHASE
1SDA105003R1
105003
ABB
1 Pcs.
Automation > Phase barrier plate
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Abb 1SDA105003R1 ABB PB 100mm 6pcs XT5 4p SEP KIT. PHASE serves as a phase separation kit inside heavy-duty electrical distribution systems. Components of this type are integrated into circuit breaker assemblies to maintain strict insulation barriers and safeguard against electrical faults. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: KXT5PB100-4
- E-Number (Norway): 4381477
- EAN: 8015644070953
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.167 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 160 mm
- Package Level 1 Height: 20 mm
- Package Level 1 Depth / Length: 250 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KXT5PB100-4 |
| E-Number (Norway) | 4381477 |
| EAN | 8015644070953 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.167 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 160 mm |
| Package Level 1 Height | 20 mm |
| Package Level 1 Depth / Length | 250 mm |
| Package Level 1 Gross Weight | 0.176 kg |
| Package Level 1 EAN | 8015644070953 |
| Additional Information | |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT5 |
| Suitable for Product Class | SACE Tamx XT |
| Technical | |
| Configuration Type | Loose or configurable |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Standards | IEC60947-2 |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| 1SDC210200D0206 | |
| 1SDC210199D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH002012A1603 |
| External Classifications and Standards | |
| ETIM 9 | EC002273 - Phase barrier plate |
| ETIM 10 | EC002273 - Phase barrier plate |
| IDEA Granular Category Code (IGCC) | 4873 >> Phase separation plate for power circuit breaker |
| UNSPSC | 39121601 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27400614 |
