View larger
Images are for illustrative purposes only. Please refer to data sheet for details

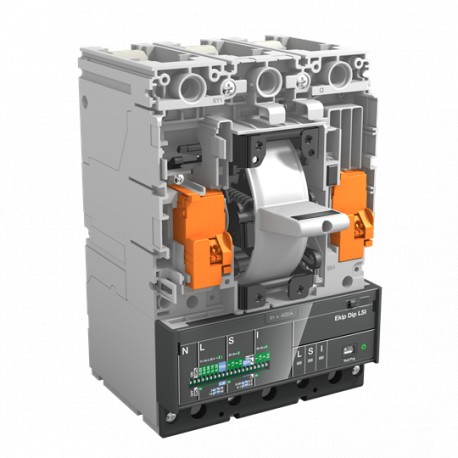

1SDA104955R1 ABB YU-C XT5-XT6 F/P 24...30 Vac/dc
1SDA104955R1
104955
ABB
1 Pcs.
YU-C XT5-XT6 F/P 24...30 Vac/dc
UNDERVOLTAGE RELEASE WIRED 24...30V AC-DC FOR C.BREAKER FIXED-PLUG-IN XT5-XT6
Automation > Under voltage coil
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲b'
General Information
Extended Product Type:
YU-C XT5-XT6 F/P 24...30 Vac/dc
Product ID:
1SDA104955R1
EAN:
8056221027212
Catalog Description:
YU-C XT5-XT6 F/P 24...30 Vac/dc
Long Description:
UNDERVOLTAGE RELEASE WIRED 24...30V AC-DC FOR C.BREAKER FIXED-PLUG-IN XT5-XT6
Ordering
EAN:
8056221027212
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099
Dimensions
Product Net Width:
110 mm
Product Net Height:
60 mm
Product Net Depth / Length:
140 mm
Product Net Weight:
0.109 kg
Container Information
Package Level 1 Units:
1 piece
Package Level 1 Width:
110 mm
Package Level 1 Height:
60 mm
Package Level 1 Depth / Length:
140 mm
Package Level 1 Gross Weight:
0.115 kg
Package Level 1 EAN:
8056221027212
Additional Information
Configuration Type:
Loose or configurable
Current Type:
AC/DC
Order Multiple:
1 piece
Product Main Type:
Accessories for Tmax XT
Product Name:
Accessory
Product Type:
ACC
Rated Voltage (Ur):
24...30 V AC
24...30 V DC
Standards:
IEC, UL
Suitable For:
XT5
XT6
Suitable for Product Class:
SACE Tamx XT
Certificates and Declarations (Document Number)
Instructions and Manuals:\n1SDH002011A1512
Classifications
ETIM 6:
EC001022 - Under voltage coil
ETIM 7:
EC001022 - Under voltage coil
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
