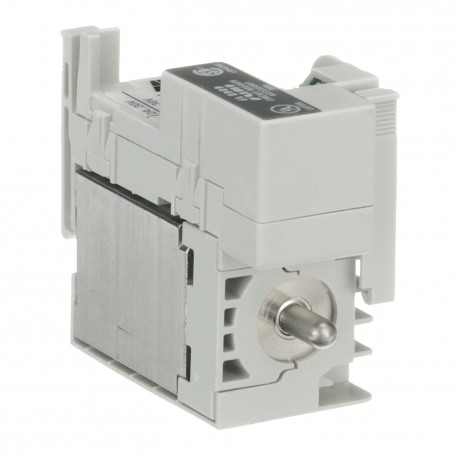

ABB 1SDA104941R1 1SDA104941R1 ABB YU XT5-XT6 24...30 Vac/dc View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104941R1 ABB YU XT5-XT6 24...30 Vac/dc

1SDA104941R1

104941

ABB

1 Pcs.

YU XT5-XT6 24...30 Vac/dc

Automation > Under voltage coil
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Abb 1SDA104941R1 YU XT5-XT6 undervoltage release monitors voltage levels in automated electrical systems, initiating a breaker trip to prevent equipment damage during power failures. This internal accessory is engineered to integrate seamlessly into industrial distribution architectures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Environmental Product Declaration - EPD: 9AKK108470A3431
  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KXTFYU1
  • E-Number (Finland): 3642172
  • E-Number (Norway): 4381363
  • EAN: 8015644070335
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 0.109 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 110 mm

More info

▲
ABB EcoSolutions
Environmental Product Declaration - EPD9AKK108470A3431
9AKK108470A7421
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKXTFYU1
E-Number (Finland)3642172
E-Number (Norway)4381363
EAN8015644070335
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.109 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width110 mm
Package Level 1 Height60 mm
Package Level 1 Depth / Length140 mm
Package Level 1 Gross Weight0.115 kg
Package Level 1 EAN8015644070335
Additional Information
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT5
XT6
Suitable for Product ClassSACE Tamx XT
Technical
Configuration TypeLoose or configurable
Current TypeAC/DC
Order Multiple1 piece
Rated Voltage (Ur)24...30 V AC
24...30 V DC
StandardsIEC60947-2
UL489
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
1SDC210200D0206
1SDC210199D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH002011A1512
External Classifications and Standards
ETIM 9EC001022 - Under voltage coil
ETIM 10EC001022 - Under voltage coil
IDEA Granular Category Code (IGCC)4148 >> Under voltage coil
UNSPSC39121010
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370417
