View larger
Images are for illustrative purposes only. Please refer to data sheet for details

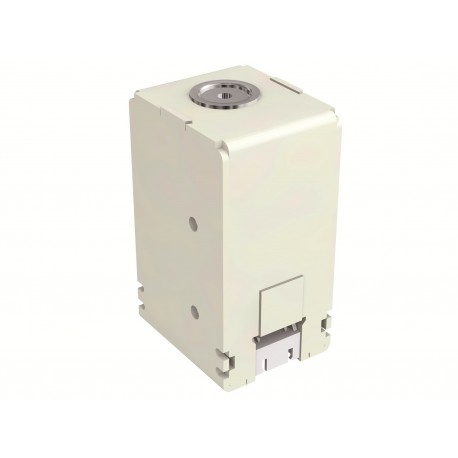

1SDA104927R1 ABB I XT5-XT6 380... 440 Vac
1SDA104927R1
104927
ABB
1 Pcs.
I XT5-XT6 380... 440 Vac
SHUNT OPENING RELEASE FOR PERMANENT SERVICE 380...440V AC XT5-XT6
Automation > Switch spool for power circuit breaker
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲b'
General Information
Extended Product Type:
YO XT5-XT6 380…440 Vac
Product ID:
1SDA104927R1
EAN:
8015644070199
Catalog Description:
YO XT5-XT6 380…440 Vac
Long Description:
SHUNT OPENING RELEASE FOR PERMANENT SERVICE 380...440V AC XT5-XT6
Ordering
EAN:
8015644070199
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099
Dimensions
Product Net Width:
110 mm
Product Net Height:
60 mm
Product Net Depth / Length:
140 mm
Product Net Weight:
0.12 kg
Container Information
Package Level 1 Units:
1 piece
Package Level 1 Width:
110 mm
Package Level 1 Height:
60 mm
Package Level 1 Depth / Length:
140 mm
Package Level 1 Gross Weight:
0.15 kg
Package Level 1 EAN:
8015644070199
Additional Information
Configuration Type:
Loose or configurable
Current Type:
AC
Order Multiple:
1 piece
Product Main Type:
Accessories for Tmax XT
Product Name:
Accessory
Product Type:
ACC
Rated Voltage (Ur):
380...525 V AC
Standards:
IEC, UL
Suitable For:
XT5
XT6
Suitable for Product Class:
SACE Tamx XT
Certificates and Declarations (Document Number)
Instructions and Manuals:\n1SDH002011A1511
Classifications
ETIM 6:
EC002483 - Switch spool for power circuit breaker
ETIM 7:
EC002483 - Switch spool for power circuit breaker
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage AC 50 Hz (EF003978) | 380 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 380 V |
| Voltage type for actuating (EF008242) | AC |
| Built as switching-on coil (EF005914) | No |
| Built as switch-off coil (EF006263) | Yes |
