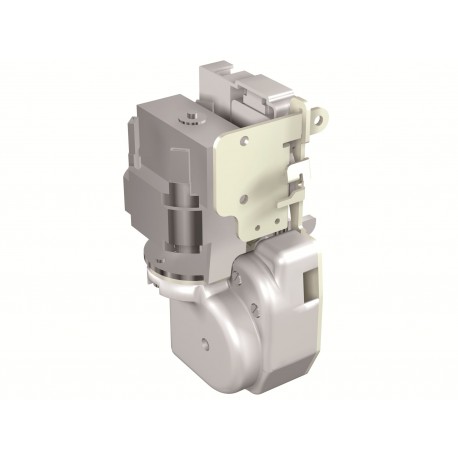

ABB 1SDA104922R1 1SDA104922R1 ABB M XT7M 220-250 V AC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104922R1 ABB M XT7M 220-250 V AC/DC

1SDA104922R1

104922

ABB

1 Pcs.

M XT7M 220-250 V AC/DC

Automation > Motor operator for power circuit-breaker
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Abb 1SDA104922R1 M XT7M functions as a specialized motor operator or spring charging mechanism built to automate the resetting and switching tasks of high-capacity circuit breakers. Industrial facilities rely on these drive assemblies to enable remote electrical supervision, minimizing physical hazard exposure during high-voltage switching operations. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KXTMSCM220-250
  • E-Number (Norway): 4381429
  • EAN: 8015644070144
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 2.2 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 130 mm
  • Package Level 1 Height: 80 mm
  • Package Level 1 Depth / Length: 200 mm

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKXTMSCM220-250
E-Number (Norway)4381429
EAN8015644070144
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight2.2 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width130 mm
Package Level 1 Height80 mm
Package Level 1 Depth / Length200 mm
Package Level 1 Gross Weight2.3 kg
Package Level 1 EAN8015644070144
Additional Information
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT7M
Suitable for Product ClassSACE Tmax XT
Technical
Configuration TypeLoose or configurable
Current TypeAC/DC
Order Multiple1 piece
Rated Voltage (Ur)220...250 V AC
220...250 V DC
StandardsIEC60947-2
UL489
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH002013A1603
External Classifications and Standards
ETIM 9EC001030 - Motor operator for power circuit-breaker
ETIM 10EC001030 - Motor operator for power circuit-breaker
IDEA Granular Category Code (IGCC)4872 >> Motor operator for power circuit-breaker
UNSPSC39121601
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370412
