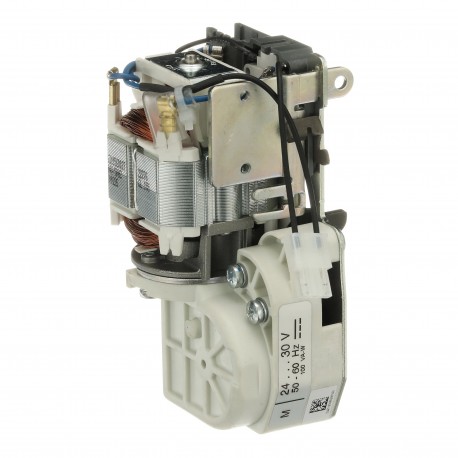

ABB 1SDA104919R1 1SDA104919R1 ABB M XT7M 24-30 V AC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104919R1 ABB M XT7M 24-30 V AC/DC

1SDA104919R1

104919

ABB

1 Pcs.

M XT7M 24-30 V AC/DC

Automation > Motor operator for power circuit-breaker
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb M XT7M 24-30 V AC/DC functions as a specialized motor operator designed to facilitate automated switching operations in electrical distribution installations. Technicians integrate these mechanical operator drives with compatible circuit breakers to enable reliable remote closing and opening cycles from a control panel. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KXTMSCM24-30
  • E-Number (Norway): 4381426
  • EAN: 8056221027175
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 2.2 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 130 mm
  • Package Level 1 Height: 80 mm
  • Package Level 1 Depth / Length: 200 mm

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKXTMSCM24-30
E-Number (Norway)4381426
EAN8056221027175
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight2.2 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width130 mm
Package Level 1 Height80 mm
Package Level 1 Depth / Length200 mm
Package Level 1 Gross Weight2.3 kg
Package Level 1 EAN8056221027175
Additional Information
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT7M
Suitable for Product ClassSACE Tmax XT
Technical
Configuration TypeLoose or configurable
Current TypeAC/DC
Order Multiple1 piece
Rated Voltage (Ur)24...30 V AC
24...30 V DC
StandardsIEC60947-2
UL489
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH002013A1603
External Classifications and Standards
ETIM 9EC001030 - Motor operator for power circuit-breaker
ETIM 10EC001030 - Motor operator for power circuit-breaker
IDEA Granular Category Code (IGCC)4872 >> Motor operator for power circuit-breaker
UNSPSC39121601
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370412
