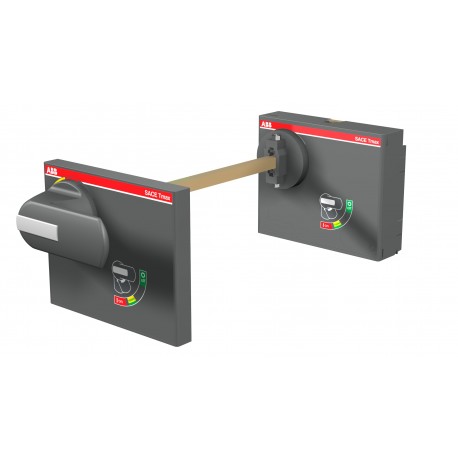

ABB 1SDA104868R1 1SDA104868R1 ABB RHE H EM XT7 F/W View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104868R1 ABB RHE H EM XT7 F/W

1SDA104868R1

104868

ABB

1 Pcs.

RHE_H_EM - XT7 F/W RHE_H_EM - XT6-XT7 F/W

Automation > Handle for power circuit breaker
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An accessory hardware component designed to support the mechanical assembly and physical mounting of electrical circuit protection equipment within industrial switchboards. This Abb part 1SDA104868R1 integrates directly with compatible modular breaker frames to ensure proper structural alignment and reliable physical operation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KXT7RHEEMH
  • E-Number (Norway): 4381211
  • EAN: 8015644069605
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 0.18 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 160 mm
  • Package Level 1 Height: 100 mm
  • Package Level 1 Depth / Length: 200 mm

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKXT7RHEEMH
E-Number (Norway)4381211
EAN8015644069605
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.18 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width160 mm
Package Level 1 Height100 mm
Package Level 1 Depth / Length200 mm
Package Level 1 Gross Weight0.28 kg
Package Level 1 EAN8015644069605
Additional Information
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT7
Suitable for Product ClassSACE Tmax XT
Technical
Configuration TypeLoose or configurable
Order Multiple1 piece
StandardsIEC60947-2
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals2TFH000063A1001
External Classifications and Standards
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
IDEA Granular Category Code (IGCC)3038 >> Handles or knobs
UNSPSC31162801
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370414
