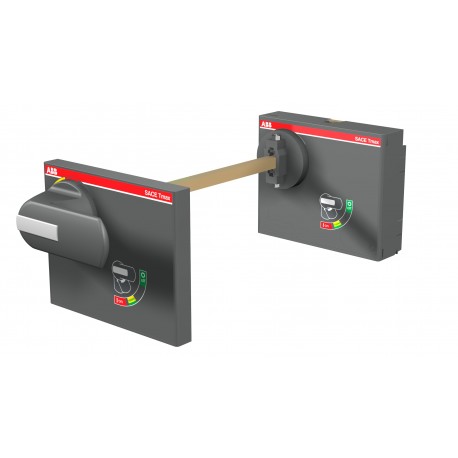

1SDA104866R1 ABB RHE EM XT7 F/W MAN. REE. ROT. EMERG.
1SDA104866R1
104866
ABB
1 Pcs.
Automation > Handle for power circuit breaker
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Crafted for demanding environments, the ABB 1SDA104866R1 manual rotary emergency mechanism enables direct control of circuit breakers mounted inside heavy-duty enclosures. Operators use emergency rotary handles to interrupt high-voltage power paths quickly and safely during critical facility events.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: KXT7RHEEM
- E-Number (Norway): 4381209
- EAN: 8015644069582
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.6 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 125 mm
- Package Level 1 Height: 120 mm
- Package Level 1 Depth / Length: 485 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KXT7RHEEM |
| E-Number (Norway) | 4381209 |
| EAN | 8015644069582 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.6 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 125 mm |
| Package Level 1 Height | 120 mm |
| Package Level 1 Depth / Length | 485 mm |
| Package Level 1 Gross Weight | 0.8 kg |
| Package Level 1 EAN | 8015644069582 |
| Additional Information | |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT7 |
| Suitable for Product Class | SACE Tmax XT |
| Technical | |
| Configuration Type | Loose or configurable |
| Order Multiple | 1 piece |
| Standards | IEC60947-2 |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 2TFH000003A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000229 - Handle for power circuit breaker |
| ETIM 10 | EC000229 - Handle for power circuit breaker |
| IDEA Granular Category Code (IGCC) | 3038 >> Handles or knobs |
| UNSPSC | 31162801 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370414 |
