View larger
Images are for illustrative purposes only. Please refer to data sheet for details

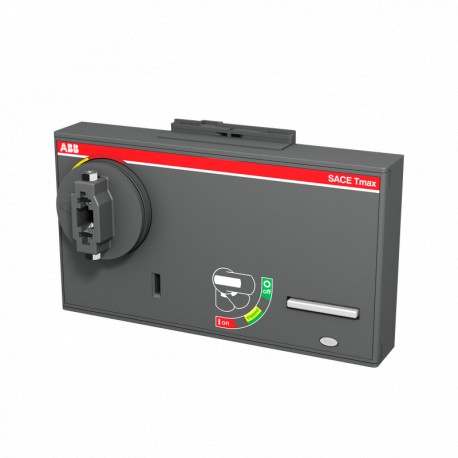

1SDA104865R1 ABB RHE B XT7 F/W BASE x MAN. FORWARD. +2PLL
1SDA104865R1
104865
ABB
1 Pcs.
RHE_B XT7 F/W BASE x MAN. FORWARD. +2PLL
RHE_B XT7 F/W BASE x RETURNED +2PLL
Automation > Handle for power circuit breaker
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KXT7RHEB2PL |
| E-Number (Norway) | 4381208 |
| EAN | 8015644069575 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 160 mm |
| Package Level 1 Height | 60 mm |
| Package Level 1 Depth / Length | 200 mm |
| Package Level 1 Gross Weight | 0.591 kg |
| Package Level 1 EAN | 8015644069575 |
| Additional Information | |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT7 |
| Suitable for Product Class | SACE Tmax XT |
| Technical | |
| Configuration Type | Loose or configurable |
| Order Multiple | 1 piece |
| Standards | IEC60947-2 |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 2TFH000003A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000229 - Handle for power circuit breaker |
| ETIM 10 | EC000229 - Handle for power circuit breaker |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| UNSPSC | 39122221 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370414 |
| Feature Name | Feature Value |
|---|---|
| With restart blockage (EF004054) | No |
| With key lock (EF026057) | No |
| Padlock locking (EF001163) | Yes |
| Colour (EF000007) | Grey |
| Suitable for emergency stop (EF001433) | Yes |
| With extension shaft (EF001434) | No |
| Suitable for power circuit breaker (EF005863) | Yes |
| Suitable for switch disconnector (EF007252) | Yes |
