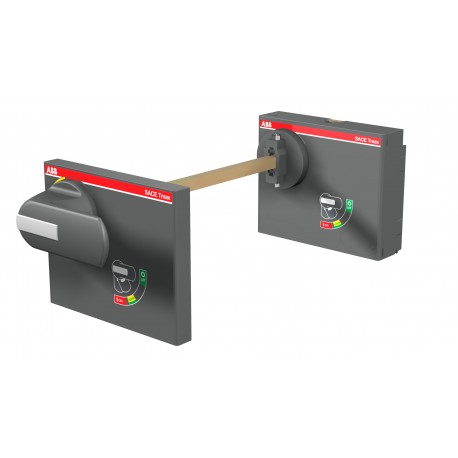

1SDA104859R1 ABB RHE EM XT6 F M. ROT FORWARDED. EMERG.
1SDA104859R1
104859
ABB
1 Pcs.
Automation > Handle for power circuit breaker
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb RHE EM XT6 F M. ROT FORWARDED. EMERG. mechanism provides emergency-rated rotary control functionality for high-capacity circuit breakers. Emergency operator mechanisms ensure distinct visual identification and reliable mechanical tripping capability during critical plant shutdowns.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: KXT6RHEEMF
- E-Number (Norway): 4381204
- EAN: 8015644069513
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.449 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 125 mm
- Package Level 1 Height: 120 mm
- Package Level 1 Depth / Length: 485 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KXT6RHEEMF |
| E-Number (Norway) | 4381204 |
| EAN | 8015644069513 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.449 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 125 mm |
| Package Level 1 Height | 120 mm |
| Package Level 1 Depth / Length | 485 mm |
| Package Level 1 Gross Weight | 0.473 kg |
| Package Level 1 EAN | 8015644069513 |
| Additional Information | |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT6 |
| Suitable for Product Class | SACE Tamx XT |
| Technical | |
| Configuration Type | Loose or configurable |
| Order Multiple | 1 piece |
| Standards | IEC60947-2 |
| UL489 | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| 1SDC210200D0206 | |
| 1SDC210199D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 2TFH000058A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000229 - Handle for power circuit breaker |
| ETIM 10 | EC000229 - Handle for power circuit breaker |
| IDEA Granular Category Code (IGCC) | 3038 >> Handles or knobs |
| UNSPSC | 31162801 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370414 |
