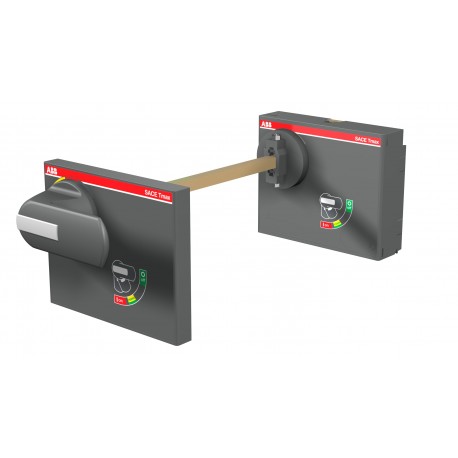

1SDA104850R1 ABB RHE EM XT5 W M. ROT FORWARDED. EMERG.
1SDA104850R1
104850
ABB
1 Pcs.
Automation > Handle for power circuit breaker
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB RHE EM XT5 W M. ROT FORWARDED. EMERG. acts as a dedicated rotary handle operating mechanism intended for emergency disconnect configurations in industrial electrical systems. These handle kits facilitate safe panel door operation while interlocking with the internal circuit protection device. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: KXT5RHEEMW
- E-Number (Norway): 4381195
- EAN: 8015644069421
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.6 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 125 mm
- Package Level 1 Height: 120 mm
- Package Level 1 Depth / Length: 485 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KXT5RHEEMW |
| E-Number (Norway) | 4381195 |
| EAN | 8015644069421 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.6 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 125 mm |
| Package Level 1 Height | 120 mm |
| Package Level 1 Depth / Length | 485 mm |
| Package Level 1 Gross Weight | 0.8 kg |
| Package Level 1 EAN | 8015644069421 |
| Additional Information | |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT5 |
| Suitable for Product Class | SACE Tamx XT |
| Technical | |
| Configuration Type | Loose or configurable |
| Order Multiple | 1 piece |
| Standards | IEC60947-2 |
| UL489 | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| 1SDC210200D0206 | |
| 1SDC210199D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 2TFH000010A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000229 - Handle for power circuit breaker |
| ETIM 10 | EC000229 - Handle for power circuit breaker |
| IDEA Granular Category Code (IGCC) | 3038 >> Handles or knobs |
| UNSPSC | 31162801 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370414 |
