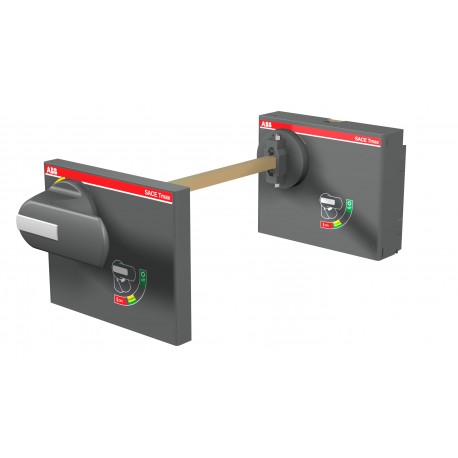

ABB 1SDA104849R1 1SDA104849R1 ABB RHE EM XT5 F M. ROT FORWARDED. EMERG. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104849R1 ABB RHE EM XT5 F M. ROT FORWARDED. EMERG.

1SDA104849R1

104849

ABB

1 Pcs.

RHE_EM XT5 F M. ROT FORWARDED. EMERG. RHE_EM XT5 F EMER. RETURNED

Automation > Handle for power circuit breaker
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for secure mechanical actuation, the Abb 1SDA104849R1 emergency rotary handle mechanism serves as an operator interface for industrial circuit protection systems. Such components are routinely integrated into electrical distribution enclosures to facilitate manual switching, emergency disconnection, and lock-out procedures from outside the panel housing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KXT5RHEEMF
  • E-Number (Norway): 4381194
  • EAN: 8015644069414
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 0.449 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 125 mm
  • Package Level 1 Height: 120 mm
  • Package Level 1 Depth / Length: 485 mm

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKXT5RHEEMF
E-Number (Norway)4381194
EAN8015644069414
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.449 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width125 mm
Package Level 1 Height120 mm
Package Level 1 Depth / Length485 mm
Package Level 1 Gross Weight1.41 kg
Package Level 1 EAN8015644069414
Additional Information
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT5
Suitable for Product ClassSACE Tamx XT
Technical
Configuration TypeLoose or configurable
Order Multiple1 piece
StandardsIEC60947-2
UL489
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
1SDC210200D0206
1SDC210199D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals2TFH000010A1001
External Classifications and Standards
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
IDEA Granular Category Code (IGCC)3038 >> Handles or knobs
UNSPSC31162801
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370414
