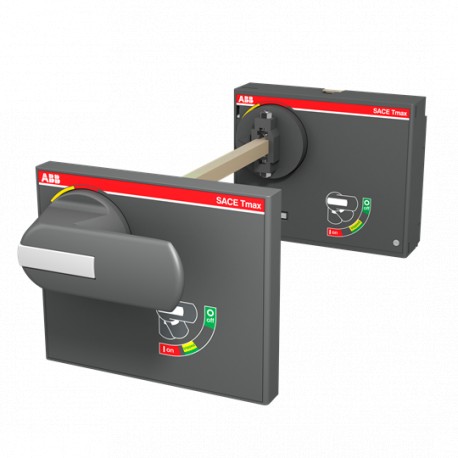

ABB 1SDA104846R1 1SDA104846R1 ABB RHE B XT5 F/PBASE R.DIST. ADJ. ROT.HA+2PLL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104846R1 ABB RHE B XT5 F/PBASE R.DIST. ADJ. ROT.HA+2PLL

1SDA104846R1

104846

ABB

1 Pcs.

RHE_B XT5 F/PBASE R.DIST. ADJ. ROT.HA+2PLL BASE FOR ADJUSTABLE DEPTH ROTARY HANDLE FOR C.BREAKER FIXED-PLUG-IN XT5 WITH DOUBLE PADLOCK

Automation > Handle for power circuit breaker
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The ABB 1SDA104846R1 provides a durable base mechanism for adjustable depth rotary handles used with industrial circuit breakers. Maintenance personnel install these assemblies to ensure reliable door-coupling operation and safe external access to internal electrical protection equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Abb
  • Manufacturer part number: 1SDA104846R1
  • Catalogue code: 104846
  • Catalogue title: 1SDA104846R1 ABB RHE B XT5 F/PBASE R.DIST. ADJ. ROT.HA+2PLL
  • Product description: b' General Information Extended Product Type: RHE_B XT5 F/PBASE R.DIST.ADJ.ROT.HA+2PLL Product ID: 1SDA104846R1 EAN: 8056221027083 Catalog Description: RHE_B XT5 F/PBASE R.DIST.ADJ.ROT.HA+2PLL Long Description: BASE FOR ; Manufacturer summary: RHE_B XT5 F/PBASE R.DIST. ADJ. ROT.HA+2PLL BASE FOR ADJUSTABLE DEPTH ROTARY HANDLE FOR C.BREAKER FIXED-PLUG-IN XT5 WITH DOUBLE PADLOCK
  • Manufacturer summary: RHE_B XT5 F/PBASE R.DIST. ADJ. ROT.HA+2PLL BASE FOR ADJUSTABLE DEPTH ROTARY HANDLE FOR C.BREAKER FIXED-PLUG-IN XT5 WITH DOUBLE PADLOCK

More info

▲

b'

General Information

Extended Product Type:
RHE_B XT5 F/PBASE R.DIST.ADJ.ROT.HA+2PLL
Product ID:
1SDA104846R1
EAN:
8056221027083
Catalog Description:
RHE_B XT5 F/PBASE R.DIST.ADJ.ROT.HA+2PLL
Long Description:
BASE FOR ADJUSTABLE DEPTH ROTARY HANDLE FOR C.BREAKER FIXED-PLUG-IN XT5 WITH DOUBLE PADLOCK
\n

Ordering

EAN:
8056221027083
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Weight:
0.331 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
130 mm
Package Level 1 Height:
135 mm
Package Level 1 Depth / Length:
145 mm
Package Level 1 Gross Weight:
0.348 kg
Package Level 1 EAN:
8056221027083

Additional Information

Configuration Type:
Loose or configurable
Order Multiple:
1 piece
Product Main Type:
Accessories for Tmax XT
Product Name:
Accessory
Product Type:
ACC
Standards:
IEC, UL
Suitable For:
XT5
Suitable for Product Class:
SACE Tamx XT

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:\n1SDC210100D0205
1SDC210200D0205
Instructions and Manuals:\n2TFH000010A1001

Classifications

ETIM 6:
EC000229 - Handle for power circuit breaker
ETIM 7:
EC000229 - Handle for power circuit breaker
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
\n
'

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
