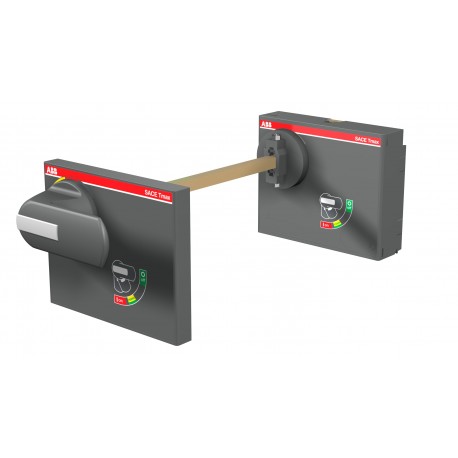

ABB 1SDA104843R1 1SDA104843R1 ABB RHE XT5 F/P ROTARY FORWARDED CONTROL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104843R1 ABB RHE XT5 F/P ROTARY FORWARDED CONTROL

1SDA104843R1

104843

ABB

1 Pcs.

RHE XT5 F/P ROTARY FORWARDED CONTROL RHE XT5 F/P STAND. RETURNED

Automation > Handle for power circuit breaker
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

1SDA104843R1 ABB RHE XT5 F/P ROTARY FORWARDED CONTROL is a rotary mechanism accessory designed to operate moulded case circuit breakers from the front of an enclosure. This assembly facilitates manual switching actions while keeping internal live components safely isolated behind a closed panel door.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KXT5RHESTFP
  • E-Number (Finland): 3642199
  • E-Number (Norway): 4381188
  • EAN: 8015644069353
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 0.444 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 125 mm
  • Package Level 1 Height: 120 mm

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKXT5RHESTFP
E-Number (Finland)3642199
E-Number (Norway)4381188
EAN8015644069353
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.444 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width125 mm
Package Level 1 Height120 mm
Package Level 1 Depth / Length485 mm
Package Level 1 Gross Weight0.467 kg
Package Level 1 EAN8015644069353
Additional Information
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT5
Suitable for Product ClassSACE Tamx XT
Technical
Configuration TypeLoose or configurable
Order Multiple1 piece
StandardsIEC60947-2
UL489
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
1SDC210200D0206
1SDC210199D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals2TFH000010A1001
External Classifications and Standards
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
IDEA Granular Category Code (IGCC)3038 >> Handles or knobs
UNSPSC31162801
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370414
