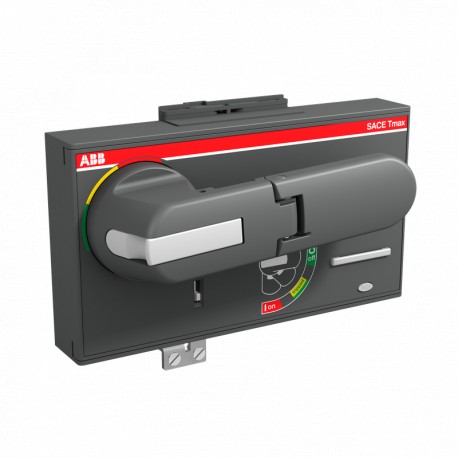

ABB 1SDA104839R1 1SDA104839R1 ABB RHD XT7 F/W ROT CONTROL. DIREC. + 2 PLLs View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104839R1 ABB RHD XT7 F/W ROT CONTROL. DIREC. + 2 PLLs

1SDA104839R1

104839

ABB

1 Pcs.

RHD XT7 F/W ROT CONTROL. DIREC. + 2 PLLs RHD XT7 F/W STAND. DIRECT + 2 PLL

Automation > Handle for power circuit breaker
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB RHD XT7 rotary control mechanism, part number 1SDA104839R1, provides directional operational management and integrated padlocking capabilities for industrial circuit protection devices.

Panel operators and direct control handles are widely implemented in commercial power distribution architectures to ensure safe, lockout-capable switching of high-capacity systems.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KXT7RHDSTFW2PL
  • E-Number (Norway): 4381159
  • EAN: 8015644069315
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 0.228 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 105 mm
  • Package Level 1 Height: 95 mm
  • Package Level 1 Depth / Length: 150 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKXT7RHDSTFW2PL
E-Number (Norway)4381159
EAN8015644069315
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.228 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width105 mm
Package Level 1 Height95 mm
Package Level 1 Depth / Length150 mm
Package Level 1 Gross Weight0.24 kg
Package Level 1 EAN8015644069315
Additional Information
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT7
Suitable for Product ClassSACE Tmax XT
Technical
Configuration TypeLoose or configurable
Order Multiple1 piece
StandardsIEC60947-2
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals2TFH000001A1001
External Classifications and Standards
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
IDEA Granular Category Code (IGCC)3038 >> Handles or knobs
UNSPSC31162801
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370414
