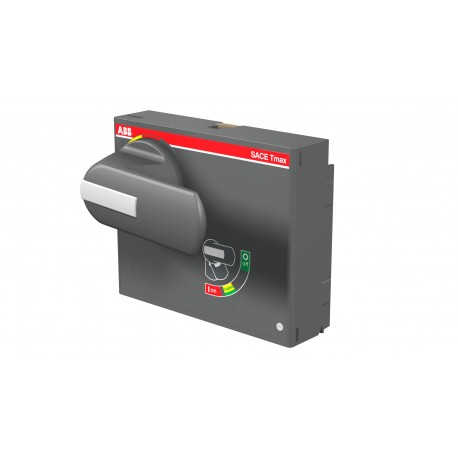

ABB 1SDA104831R1 1SDA104831R1 ABB RHD EM XT5 W ROT CONTROL. DIR. EMERG. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104831R1 ABB RHD EM XT5 W ROT CONTROL. DIR. EMERG.

1SDA104831R1

104831

ABB

1 Pcs.

RHD_EM XT5 W ROT CONTROL. DIR. EMERG. RHD_EM XT5 W EMER. DIRECT

Automation > Handle for power circuit breaker
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 1SDA104831R1 ABB RHD EM XT5 W ROT CONTROL. DIR. EMERG. is a red rotary handle mechanism engineered for emergency stop applications on molded case circuit breakers. Rotary control assemblies allow operators to safely actuate interior circuit protection devices from the exterior of an enclosure door. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KXT5RHDEMW
  • E-Number (Norway): 4381151
  • EAN: 8015644069230
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 0.3 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 140 mm
  • Package Level 1 Height: 125 mm
  • Package Level 1 Depth / Length: 115 mm

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKXT5RHDEMW
E-Number (Norway)4381151
EAN8015644069230
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.3 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width140 mm
Package Level 1 Height125 mm
Package Level 1 Depth / Length115 mm
Package Level 1 Gross Weight0.4 kg
Package Level 1 EAN8015644069230
Additional Information
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT5
Suitable for Product ClassSACE Tamx XT
Technical
Configuration TypeLoose or configurable
Order Multiple1 piece
StandardsIEC60947-2
UL489
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
1SDC210200D0206
1SDC210199D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals2TFH000009A1001
External Classifications and Standards
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
IDEA Granular Category Code (IGCC)3038 >> Handles or knobs
UNSPSC31162801
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370414
