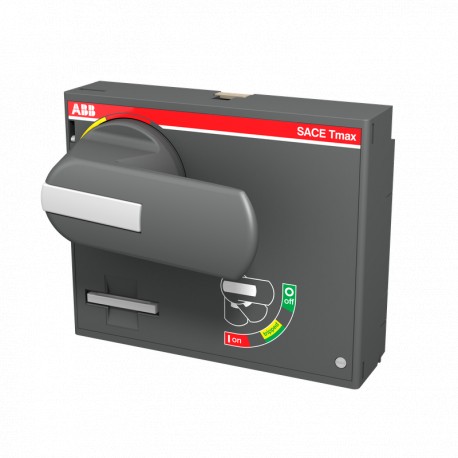

1SDA104827R1 ABB RHD XT5 F/P ROT CONTROL. DIRECT + 2 PLL
1SDA104827R1
104827
ABB
1 Pcs.
Automation > Handle for power circuit breaker
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Direct rotary control assembly equipped with padlock provisions for secure manual switching of high-performance circuit breakers within industrial distribution boards. This unit provides reliable mechanical actuation while preventing unauthorized access to critical electrical pathways. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: KXT5RHDSTFP2PL
- E-Number (Norway): 4381147
- EAN: 8015644069193
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.228 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 105 mm
- Package Level 1 Height: 95 mm
- Package Level 1 Depth / Length: 150 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KXT5RHDSTFP2PL |
| E-Number (Norway) | 4381147 |
| EAN | 8015644069193 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.228 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 105 mm |
| Package Level 1 Height | 95 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Gross Weight | 0.24 kg |
| Package Level 1 EAN | 8015644069193 |
| Additional Information | |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT5 |
| Suitable for Product Class | SACE Tamx XT |
| Technical | |
| Configuration Type | Loose or configurable |
| Order Multiple | 1 piece |
| Standards | IEC60947-2 |
| UL489 | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| 1SDC210200D0206 | |
| 1SDC210199D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 2TFH000009A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000229 - Handle for power circuit breaker |
| ETIM 10 | EC000229 - Handle for power circuit breaker |
| IDEA Granular Category Code (IGCC) | 3038 >> Handles or knobs |
| UNSPSC | 31162801 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370414 |
