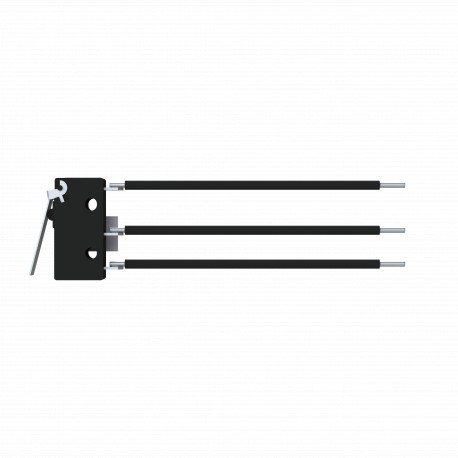

ABB 1SDA104819R1 1SDA104819R1 ABB AUP-T XT5-XT6 W 1 Contact Test 24V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104819R1 ABB AUP-T XT5-XT6 W 1 Contact Test 24V

1SDA104819R1

104819

ABB

1 Pcs.

AUP-T XT5-XT6 W 1 Contact Test 24V AUP-T XT5-XT6 W 1 Test contact 24V

Automation > Auxiliary contact block
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The ABB 1SDA104819R1 test-capable auxiliary contact facilitates diagnostic verification of control wiring and breaker signaling circuits during routine maintenance on XT5 and XT6 systems. It permits low-voltage testing without operating the primary switchgear poles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KXTF24TEST
  • E-Number (Norway): 4381134
  • EAN: 8015644069117
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 0.03 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 105 mm
  • Package Level 1 Height: 55 mm
  • Package Level 1 Depth / Length: 135 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKXTF24TEST
E-Number (Norway)4381134
EAN8015644069117
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.03 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width105 mm
Package Level 1 Height55 mm
Package Level 1 Depth / Length135 mm
Package Level 1 Gross Weight0.03 kg
Package Level 1 EAN8015644069117
Additional Information
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT5
XT6
Suitable for Product ClassSACE Tamx XT
Technical
Configuration TypeLoose or configurable
Current TypeAC/DC
Number of Auxiliary Contacts CO (SPDT)1
Order Multiple1 piece
StandardsIEC60947-2
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
1SDC210200D0206
1SDC210199D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals2TFH000013A1001
External Classifications and Standards
ETIM 9EC000041 - Auxiliary contact block
ETIM 10EC000041 - Auxiliary contact block
IDEA Granular Category Code (IGCC)4743 >> Auxiliary contact block
UNSPSC39121522
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371302

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
