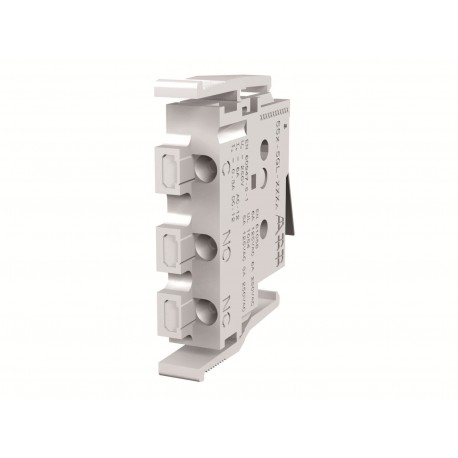

ABB 1SDA104810R1 1SDA104810R1 ABB AUX 1S52 24V XT7 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104810R1 ABB AUX 1S52 24V XT7

1SDA104810R1

104810

ABB

1 Pcs.

AUX 1S52 24V XT7

Automation > Auxiliary contact block
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An auxiliary contact module, known as the 1SDA104810R1 ABB AUX 1S52 24V XT7 from Abb, is engineered to signal breaker operations in power distribution systems. Switchgear builders utilize these internal modules to monitor circuit breaker positions and trip statuses remotely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KXT7AUXDS52
  • EAN: 8056221027045
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 0.127 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 110 mm
  • Package Level 1 Height: 60 mm
  • Package Level 1 Depth / Length: 140 mm
  • Package Level 1 Gross Weight: 0.134 kg

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKXT7AUXDS52
EAN8056221027045
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.127 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width110 mm
Package Level 1 Height60 mm
Package Level 1 Depth / Length140 mm
Package Level 1 Gross Weight0.134 kg
Package Level 1 EAN8056221027045
Additional Information
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT7
Suitable for Product ClassSACE Tmax XT
Technical
Configuration TypeLoose or configurable
Current TypeDC
Number of Auxiliary Contacts CO (SPDT)1
Order Multiple1 piece
StandardsIEC60947-2
UL489
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH002012A1605
External Classifications and Standards
ETIM 9EC000041 - Auxiliary contact block
ETIM 10EC000041 - Auxiliary contact block
IDEA Granular Category Code (IGCC)4743 >> Auxiliary contact block
UNSPSC39121522
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371302

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
