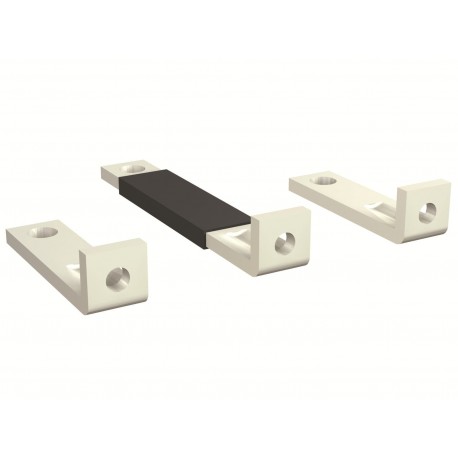

ABB 1SDA104774R1 1SDA104774R1 ABB HR/VR FP XT5 400A 3pcs Kit (same length) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104774R1 ABB HR/VR FP XT5 400A 3pcs Kit (same length)

1SDA104774R1

104774

ABB

1 Pcs.

HR/VR FP XT5 400A 3pcs Kit (same length) REAR TERMINALS SAME LENGHT HORIZONTAL/VERTICAL 3pcs FOR FIXED PART XT5 400A IEC

Automation > Connection vane/phase spreader
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

b'

General Information

Extended Product Type:
Kit HR/VR FP XT5 400A 3pcs (same lenght)
Product ID:
1SDA104774R1
EAN:
8015644068660
Catalog Description:
Kit HR/VR FP XT5 400A 3pcs (same lenght)
Long Description:
REAR TERMINALS SAME LENGHT HORIZONTAL/VERTICAL 3pcs FOR FIXED PART XT5 400A IEC
\n

Ordering

EAN:
8015644068660
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Width:
145 mm
Product Net Height:
30 mm
Product Net Depth / Length:
250 mm
Product Net Weight:
0.145 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
145 mm
Package Level 1 Height:
30 mm
Package Level 1 Depth / Length:
250 mm
Package Level 1 Gross Weight:
0.145 kg
Package Level 1 EAN:
8015644068660

Additional Information

Configuration Type:
Loose or configurable
Number of Poles:
3
Order Multiple:
1 piece
Product Main Type:
Accessories for Tmax XT
Product Name:
Accessory
Product Type:
ACC
Standards:
IEC, UL
Suitable For:
XT5
Suitable for Product Class:
SACE Tamx XT

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:\n1SDC210100D0205
1SDC210200D0205
Instructions and Manuals:\n2TFH000022A1001

Classifications

ETIM 6:
EC002019 - Connection vane/phase spreader
ETIM 7:
EC002019 - Connection vane/phase spreader
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
\n
'

ETIM for 1SDA104774R1 Low-voltage industrial controls and switchgear (EC002019)
Feature Name Feature Value
Suitable for number of poles (EF001589) 3
