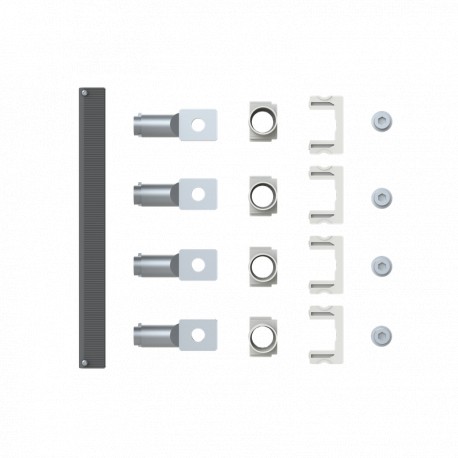

ABB 1SDA104763R1 1SDA104763R1 ABB KIT R- REAR TERMINALS XT6 4pcs View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104763R1 ABB KIT R- REAR TERMINALS XT6 4pcs

1SDA104763R1

104763

ABB

1 Pcs.

KIT R- REAR TERMINALS - XT6 4pcs

Automation > Connection vane/phase spreader
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An 1SDA104763R1 ABB KIT R- REAR TERMINALS XT6 4pcs kit provides rear-facing connection points for circuit breakers, allowing power cables to interface directly from the back of an enclosure. This configuration optimizes panel wiring layouts in complex industrial power distribution centers. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KXT6R-4PC
  • E-Number (Norway): 4381044
  • EAN: 8015644068554
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 1.368 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 135 mm
  • Package Level 1 Height: 75 mm
  • Package Level 1 Depth / Length: 305 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKXT6R-4PC
E-Number (Norway)4381044
EAN8015644068554
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight1.368 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width135 mm
Package Level 1 Height75 mm
Package Level 1 Depth / Length305 mm
Package Level 1 Gross Weight1.44 kg
Package Level 1 EAN8015644068554
Additional Information
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT6
Suitable for Product ClassSACE Tamx XT
Technical
Configuration TypeLoose or configurable
Number of Poles4P
Order Multiple1 piece
StandardsIEC60947-2
UL489
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
1SDC210200D0206
1SDC210199D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH002012A1807
External Classifications and Standards
ETIM 9EC002019 - Connection vane/phase spreader
ETIM 10EC002019 - Connection vane/phase spreader
IDEA Granular Category Code (IGCC)4603 >> Electrical terminals
UNSPSC39121432
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371305
