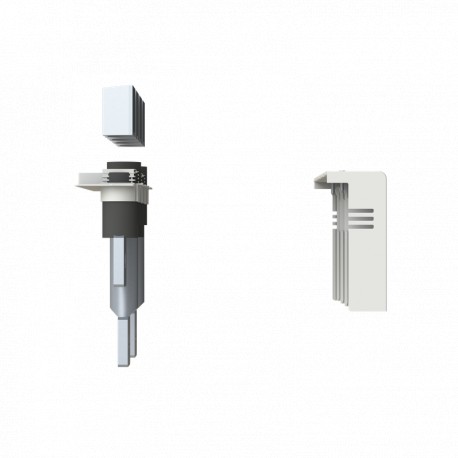

1SDA104760R1 ABB KIT R- REAR TERMINALS XT5 3pcs
1SDA104760R1
104760
ABB
1 Pcs.
Automation > Connection vane/phase spreader
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A rear terminal kit is an essential installation assembly used in molded case circuit breakers to redirect cable connections toward the back of an electrical panel. This configuration facilitates clean cable routing, optimizes internal switchboard space, and maintains secure contact points in high-capacity power distribution systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: KXT5R-3PC
- E-Number (Norway): 4381041
- EAN: 8015644068523
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.942 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 507 mm
- Package Level 1 Height: 59 mm
- Package Level 1 Depth / Length: 311 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KXT5R-3PC |
| E-Number (Norway) | 4381041 |
| EAN | 8015644068523 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.942 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 507 mm |
| Package Level 1 Height | 59 mm |
| Package Level 1 Depth / Length | 311 mm |
| Package Level 1 Gross Weight | 0.992 kg |
| Package Level 1 EAN | 8015644068523 |
| Additional Information | |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT5 |
| Suitable for Product Class | SACE Tamx XT |
| Technical | |
| Configuration Type | Loose or configurable |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Standards | IEC60947-2 |
| UL489 | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| 1SDC210200D0206 | |
| 1SDC210199D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH002011A1807 |
| External Classifications and Standards | |
| ETIM 9 | EC002019 - Connection vane/phase spreader |
| ETIM 10 | EC002019 - Connection vane/phase spreader |
| IDEA Granular Category Code (IGCC) | 4603 >> Electrical terminals |
| UNSPSC | 39121432 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371305 |
