View larger
Images are for illustrative purposes only. Please refer to data sheet for details

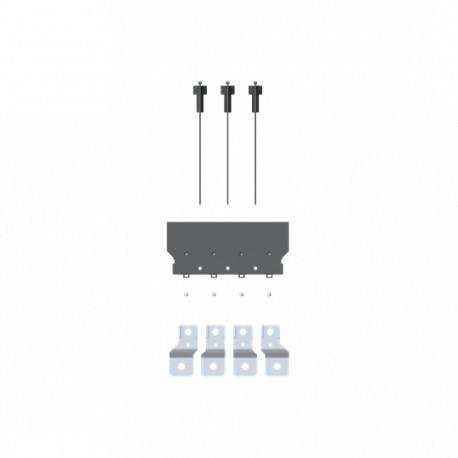

1SDA104739R1 ABB KIT ES XT5 4pcs
1SDA104739R1
104739
ABB
1 Pcs.
KIT ES XT5 4pcs
Automation > Connection vane/phase spreader
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KXT5ES-4PC |
| E-Number (Finland) | 3642347 |
| E-Number (Norway) | 4381000 |
| EAN | 8015644068318 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.483 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 200 mm |
| Package Level 1 Height | 40 mm |
| Package Level 1 Depth / Length | 250 mm |
| Package Level 1 Gross Weight | 0.508 kg |
| Package Level 1 EAN | 8015644068318 |
| Additional Information | |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT5 |
| Suitable for Product Class | SACE Tamx XT |
| Technical | |
| Configuration Type | Loose or configurable |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Standards | IEC60947-2 |
| UL489 | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| 1SDC210200D0206 | |
| 1SDC210199D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH002011A1803 |
| External Classifications and Standards | |
| ETIM 9 | EC002019 - Connection vane/phase spreader |
| ETIM 10 | EC002019 - Connection vane/phase spreader |
| IDEA Granular Category Code (IGCC) | 4603 >> Electrical terminals |
| UNSPSC | 39121432 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371305 |
| Feature Name | Feature Value |
|---|---|
| Suitable for number of poles (EF001589) | 4 |
