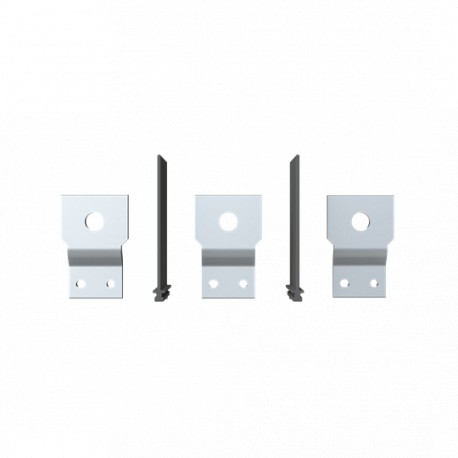

ABB 1SDA104736R1 1SDA104736R1 ABB KIT EF XT6 800A 3pcs View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA104736R1 ABB KIT EF XT6 800A 3pcs

1SDA104736R1

104736

ABB

1 Pcs.

KIT EF XT6 800A 3pcs KIT EF XT6 3pcs 800A

Automation > Connection vane/phase spreader
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Constructed as an ABB KIT EF XT6 800A 3pcs set, this hardware collection delivers extended front terminals intended for high-amperage circuit breaker installations. Front terminal kits of this category ensure proper mechanical clearance and reliable electrical contact in heavy-duty distribution panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KXT6EF-3PC
  • E-Number (Finland): 3642340
  • E-Number (Norway): 4380981
  • EAN: 8015644068288
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 0.5 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 120 mm
  • Package Level 1 Height: 180 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKXT6EF-3PC
E-Number (Finland)3642340
E-Number (Norway)4380981
EAN8015644068288
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.5 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width120 mm
Package Level 1 Height180 mm
Package Level 1 Depth / Length225 mm
Package Level 1 Gross Weight0.526 kg
Package Level 1 EAN8015644068288
Additional Information
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT6
Suitable for Product ClassSACE Tamx XT
Technical
Configuration TypeLoose or configurable
Number of Poles3P
Order Multiple1 piece
StandardsIEC60947-2
UL489
Terminal Connection TypeFront Extended
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
1SDC210200D0206
1SDC210199D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH002012A1802
External Classifications and Standards
ETIM 9EC002019 - Connection vane/phase spreader
ETIM 10EC002019 - Connection vane/phase spreader
IDEA Granular Category Code (IGCC)4603 >> Electrical terminals
UNSPSC39121432
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371305
